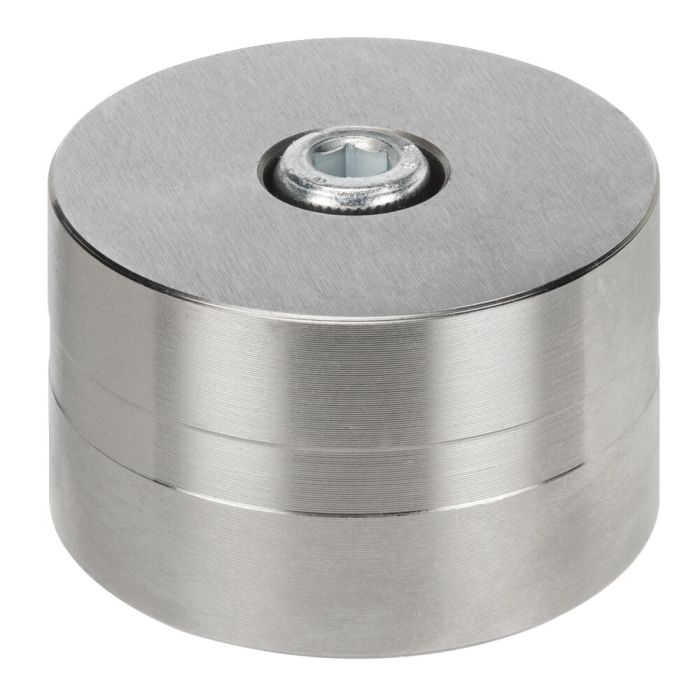

Pole extension, fixed

Application:
Fixed pole extensions are attached directly to the poles of the magnetic clamping plate with an M8 screw.
Pre-processed or flat workpieces can be placed directly on the fixed pole extensions and clamped.
If the workpiece has uneven surfaces, it is usually placed on 3 fixed pole extensions and clamped (three-point bearing). Movable pole extensions, which adapt flexibly to the workpiece contours, are fastened onto all other poles.

Features:
The pole extensions are designed for the optimum magnetic flux through the pole extension into the workpiece.
The M8 fastening screw is supplied as standard.

Advantage:
- Easy and quick installation
- Optimum power flux of the magnetic field lines
- Strong holding forces
