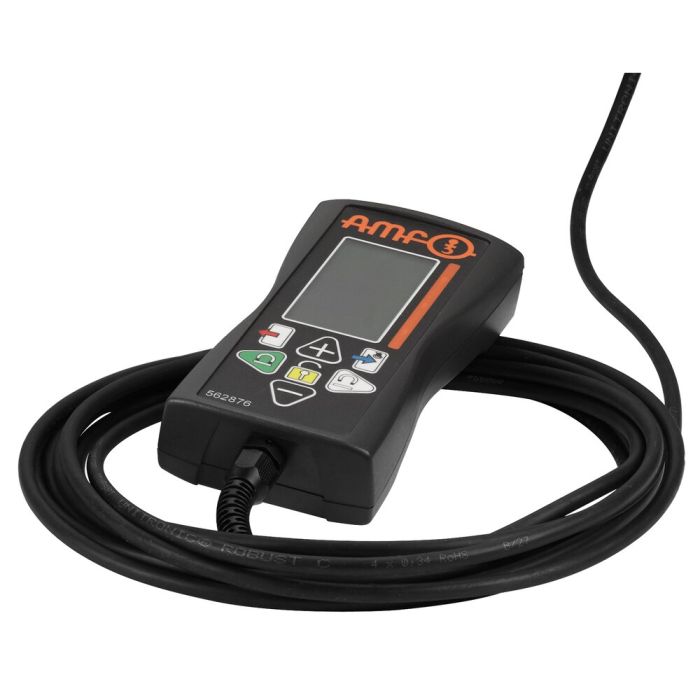

Hand-held controller for magnetic clamping technology incl. holding force regulation
Application:
The hand-held controller is used to control the magnetic clamping plates through the control unit. The holding force regulation allows individual reaction to all circumstances.
To start the magnetisation or demagnetisation cycle, the following key combinations must be pressed simultaneously:
- Magnetisation = MAG + Release
- Demagnetisation = DEMAG + Release
Features:
The hand-held controller works with all AMF control units of the series 2970SGH and is connected directly to the control unit by means of a plug connection.
The connection cable is 3 m long.
Advantage:
- Including the functions: holding force regulation, channel selection and system evaluation
- Connection-ready delivery
- Can be connected directly to the control device or control unit
- Magnetic-foil attached to the back for easy handling
| Order no. | 562876 |
|---|
