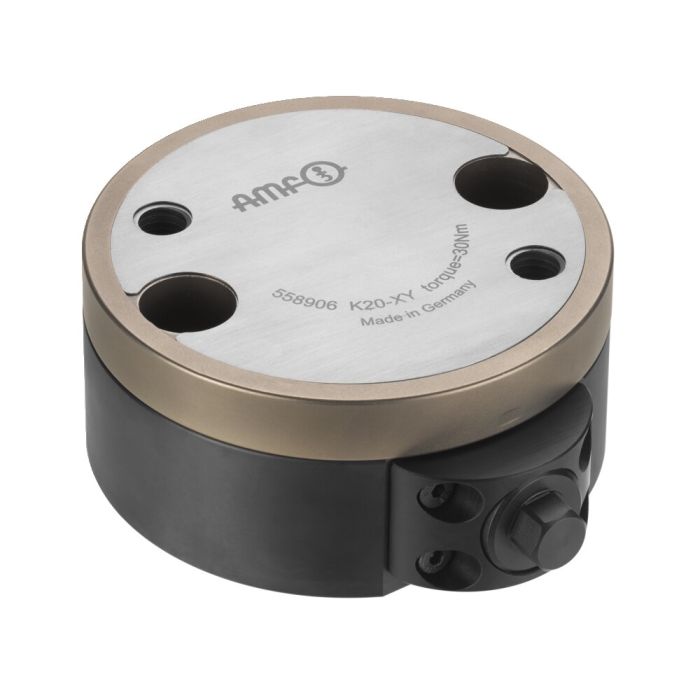

Counterbalance element XY-plane
Size B20
Order no.
558906
Application:
The counterbalance element can compensate for a position tolerance of up to 4 mm in the plane. It is used to compensate for distance tolerances of the pull-studs. The upper part can be pushed to the base in the opened condition and is clamped without twisting by actuating the clamping screw.
Note:
The fastening bolts are supplied as standard.
Advantage:
Simple, quick and flexible clamping on the machine table of complex workpiece contours with large pull-stud distance tolerances.
| Order no. | 558906 |
|---|---|
| Product type | Modulares Nullpunktspannsystem |
| Operating mode | Mechanical |
| Size clamping module | 20 |
| Weight [g] | 3400 |
