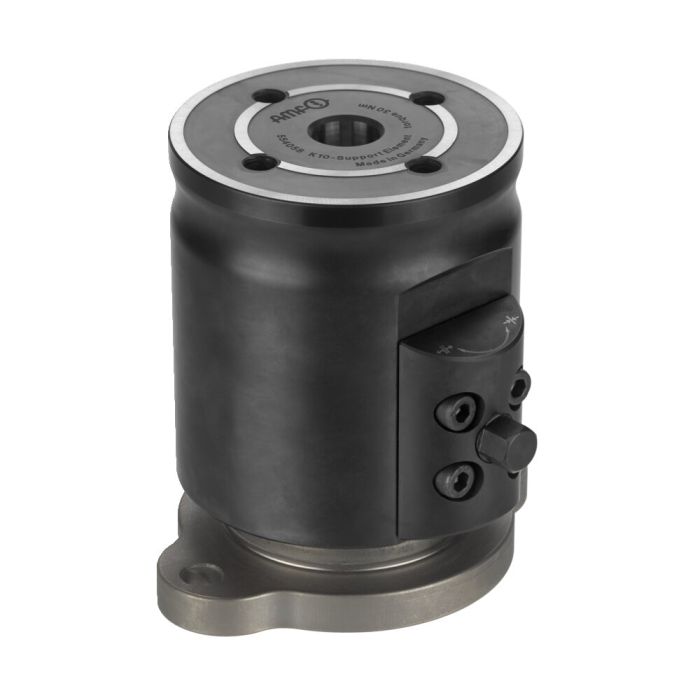

Height counterbalance element
Application:
The height counterbalance element is used to clamp a workpiece distortion-free, beginning with the fourth support point. The element attaches itself by spring force and is then fastened by turning the clamping screw. The height counterbalance element is normally extended.
This element can also be used as a support element to prevent bending and vibration of the workpieces.
Note:
The fastening bolts are supplied as standard.
Order number of the centring sleeves:
- size B10: order no. 535732 and 430223
- size B20: order no. 78006
Advantage:
Simple, quick and flexible clamping of complex workpiece contours on the machine table. Particularly suitable for levelling workpieces or clamping fixtures at the necessary machine heights in the machine tool for clamping these securely.
| Order no. | 558903 |
|---|---|
| Product type | Modular zero-point clamping system |
| Operating mode | Mechanical |
| Size clamping module | 20 |
