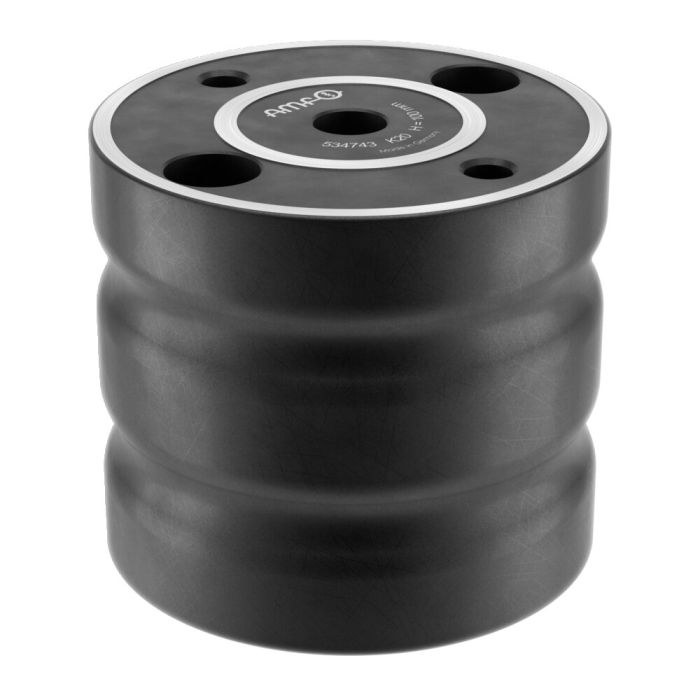

Intermediate element
Application:
The intermediate elements are used as height adapters for workpieces and clamping fixtures, and are mounted to the main elements. Workpieces are clamped by means of assembly elements.
This clamping system can be used to move workpieces to the required machining height in the machine for 5-sided machining, or for the safe and quick clamping of workpieces with ledges and different clamping heights on the machine table.
Note:
For the adaptation to zero point clamping modules, with the exception of the installation heights H20, 28 and 30, the mounting bore for the pull-studs, corresponding to sizes 10 and 20, is already made in the intermediate element.
If two or more intermediate elements are used, they can be axially aligned and then bolted using centring sleeves. The fastening bolts are supplied as standard.
When fastening to AMF grid plates, pay attention to bolt lengths!
Order numbers on the centring sleeves:
- size 10: Order no. 535732
- size 20: Order no. 78006
Advantage:
Simple, quick and flexible clamping of complex workpiece contours on the machine table. Especially suitable for levelling workpieces or clamping fixtures at the necessary machine heights in the machine tool and for the reliable clamping of same.
| Order no. | 534701 |
|---|---|
| Product type | Modular zero-point clamping system |
| Operating mode | Mechanical, Hydraulic, Pneumatic |
| Size clamping module | 20 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
- Pull-stud size 20 for M10 and M12 engagement screw Nr. 303149 For clamping modules size 20, zero point pull-stud
