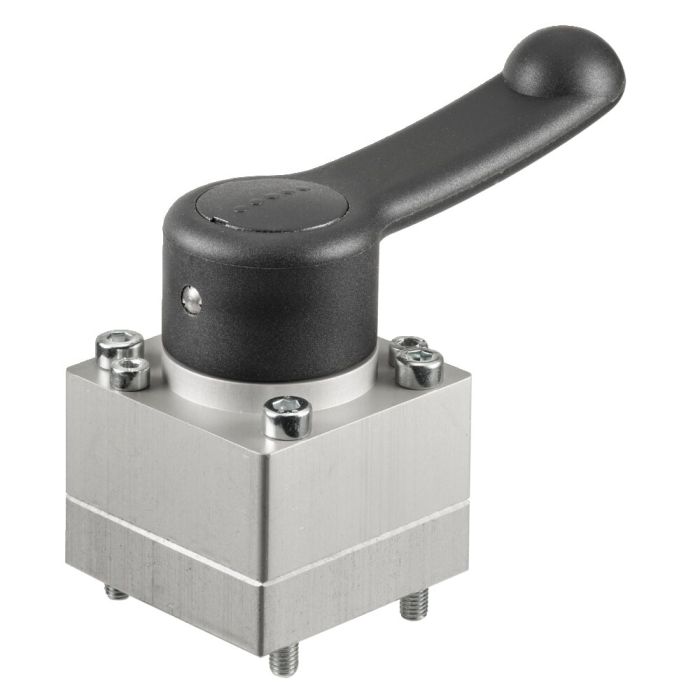

Directional valve 4/3
Max. operating pressure 700 bar, for double acting cylinders, type of actuation manual
Order no.
563516
Design:
Design: Piston valve
Type of actuation: manual
Application:
For double acting cylinders. CETOP 3 adaptation.
| Order no. | 563516 |
|---|---|
| Max. operating pressure [bar] | 500 |
| Type of actuation | Double acting |
| Clamping circuits | 1 |
