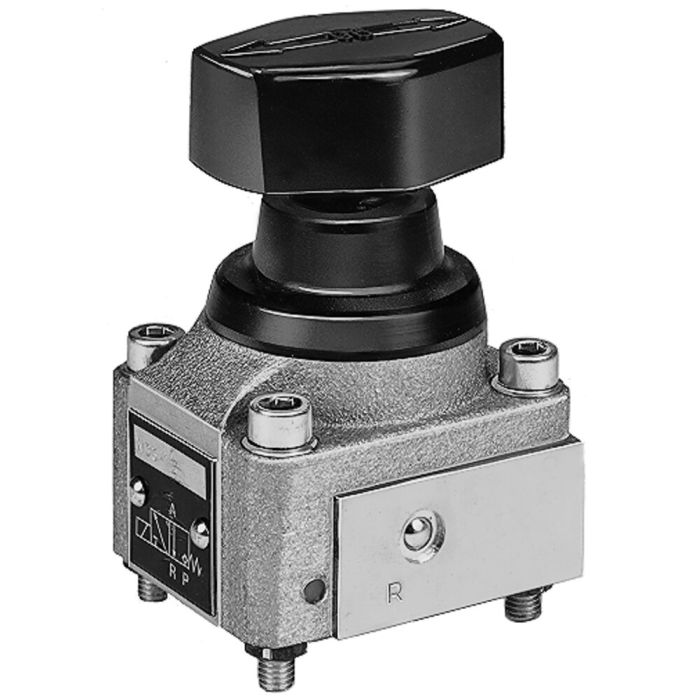

Seat Valve 3/2
Max. operating pressure 500 bar, for single acting cylinders, type of actuation manual
Order no.
271031
Design:
Design: Seat valve
Type of actuation: manual
Application:
For single acting cylinders. CETOP 3 adaptation.
| Order no. | 271031 |
|---|---|
| Max. operating pressure [bar] | 500 |
| Type of actuation | Single acting |
| Clamping circuits | 1 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
