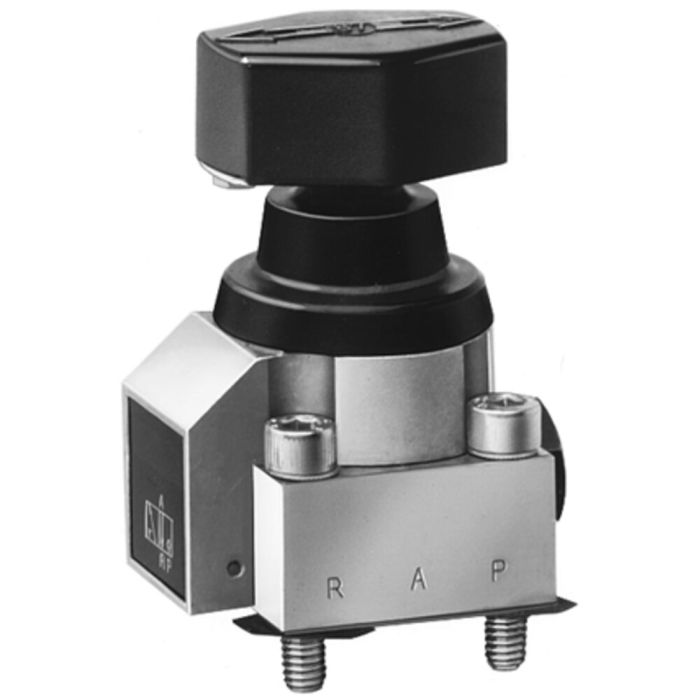

Manual Seat Valve, 2/2-Way
For O-ring connection, max. operating pressure 500 bar, actuation manual
Order no.
181214
Application:
By means of the 2/2 manual way seat valve an oil channel can be closed or opened.
Features:
Hermetic sealing by ball seats. Sealing of the oil channels of the valve base with O-rings. The seat valve has completely hydraulic pressure compensation and negative switching.
Note:
The direction of flow has to be the direction of the arrow according to the symbol. The position of installation is optional. Hydraulic oil HLP or HLPD according to DIN 51524 Part 2.
| Order no. | 181214 |
|---|---|
| Product type | Manual seat valve |
| Max. operating pressure [bar] | 500 |
| Oil port | O-ring |
| Design | 2/2 |
| Volume flow [l/min] | 12 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
