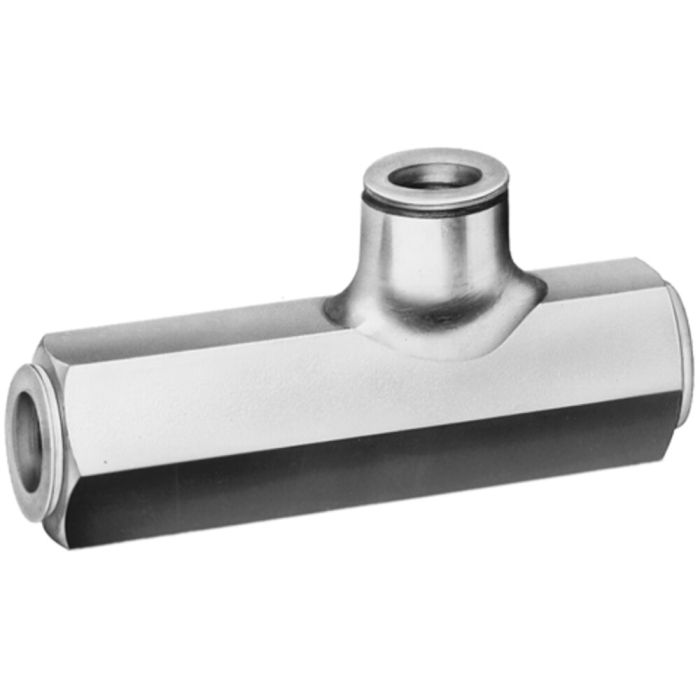

Check valve, hydraulically pilot operated
For thread connection, max. operating pressure 700 bar, volume flow 15 l/min, differential pressure 8 bar
Order no.
60491
Design:
Housing made of steel, surface galvanized. Spring-loaded ball acting as a valve element. The control connection is damped by a throttle.
| Order no. | 60491 |
|---|---|
| Product type | Check valve |
| Max. operating pressure [bar] | 700 |
| Oil port | Thread |
| Volume flow [l/min] | 15 |
