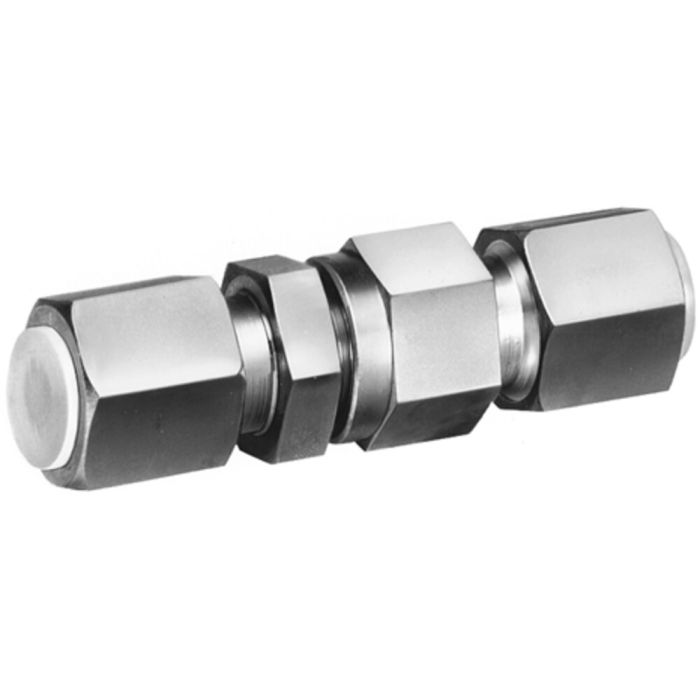

Line Check Valve
For pipe connection, max. operating pressure 630 bar, volume flow 12 l/min, differential pressure 3 bar
Order no.
62885
Design:
Housing made of steel, surface galvanized. Sealing cone spring loaded with O-ring sealing. Sealings made of Perbunan.
Note:
The direction of flow is indicated on the hex nut housing by means of an arrow. On the threaded side sealing is done by means of a sealing edge and on the pipe side the valve is sealed by means of a cutting ring.
| Order no. | 62885 |
|---|---|
| Product type | Check valve |
| Max. operating pressure [bar] | 630 |
| Oil port | Pipe |
| Volume flow [l/min] | 12 |
