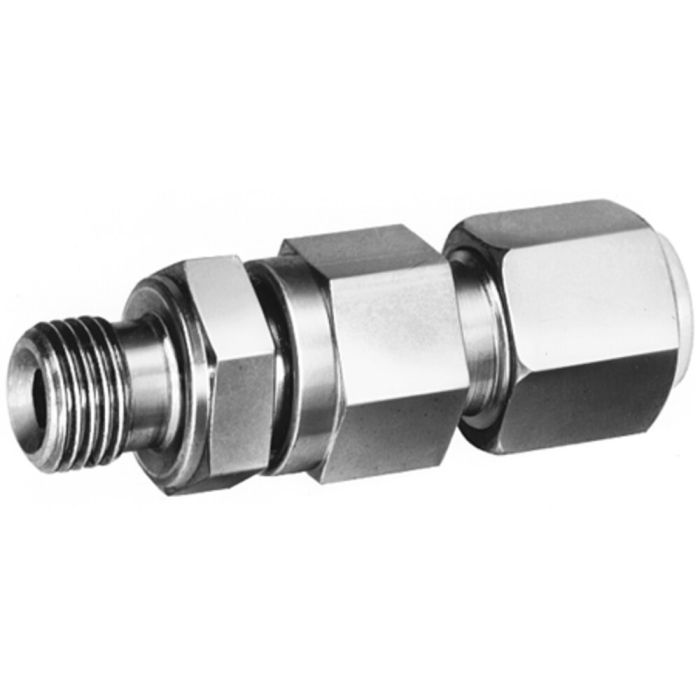

Threaded Check Valve
For thread/pipe connection, max. operating pressure 630 bar, volume flow 12 l/min, differential pressure 3 bar, direction of flow A - B
Order no.
62901
Design:
Housing made of steel, surface galvanized. Ball seat valve type.
Application:
By means of two input connections which can be shut and an output connection the alternating valve connects A or B with C according to the present pressurized line; the other connection is closed by means of a ball.
Note:
Attention: The hydraulic line empties itself when not under pressure. The pipe connection is sealed by means of a cutting ring.
| Order no. | 62901 |
|---|---|
| Product type | Check valve |
| Max. operating pressure [bar] | 630 |
| Oil port | Thread, Pipe |
| Volume flow [l/min] | 12 |
