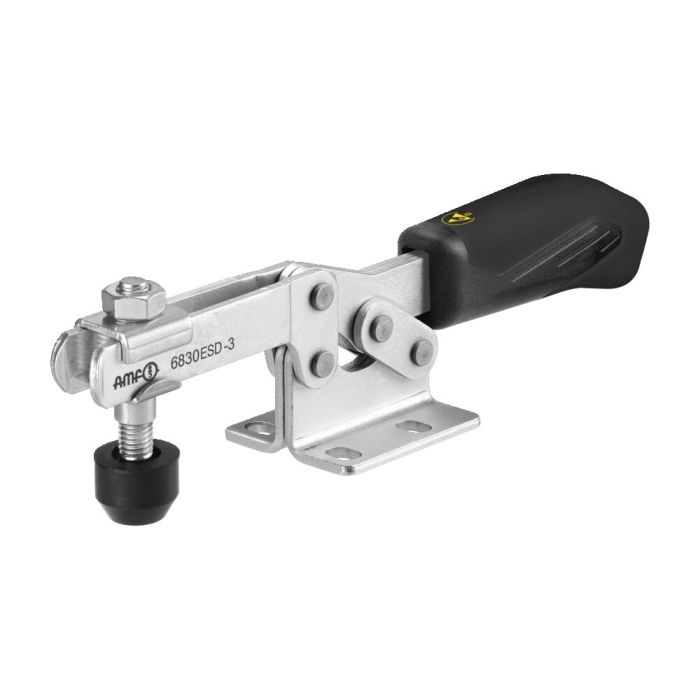

ESD horizontal toggle clamp
With open clamping arm and horizontal base, size 0, max. clamping force 0,4 kN
Order no.
562488
Application:
The ESD horizontal toggle clamp has been specially developed for use in ESD protection zones (EPA – electrostatic protected area) for working on electrostatically sensitive components, assemblies or devices in accordance with the standard DIN EN 61340-5-1.
Features:
- Leakage resistance according to DIN IEC/TR 61340-5-2 between 10⁰⁴ and 10⁰⁹ Ohm
- Discharge time according to DIN IEC/TR 61340-5-2 < 2 Sekunden
- Surface tension (electric field strength) according to DIN EN 61340-5-1 < 100 Volt
Note:
The ESD horizontal toggle clamp is non-insulating. It must not be used in areas where open voltages are used.
| Order no. | 562488 |
|---|---|
| Product type | Horizontal toggle clamp |
| Max. clamping force [kN] | 0.4 |
| Größe Schnellspanner | 0 |
| Material | Steel, galvanized |
| Foot alignment | Horizontal |
| Handle color | Black |
| Special features | ESD |
