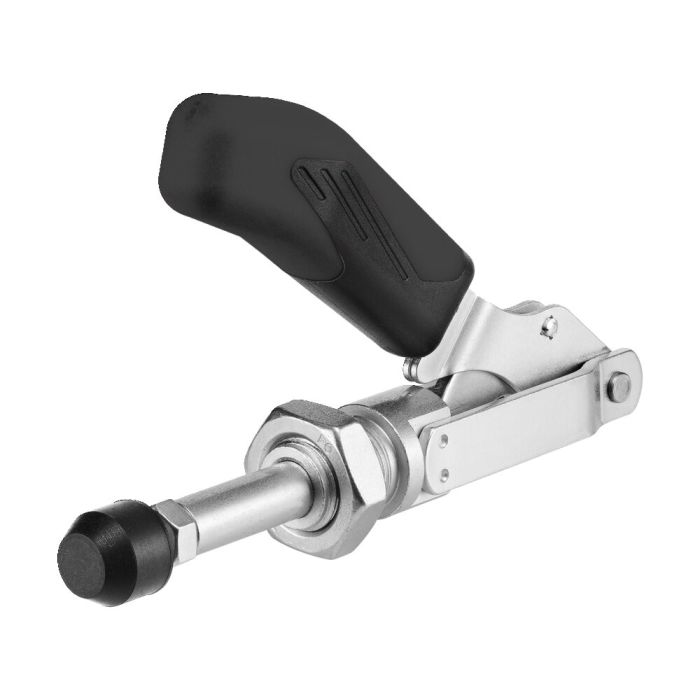

ESD push-pull type toggle clamp
Without angle base, size 2, max. clamping force 2 kN
Order no.
562494
Application:
The ESD push-pull type toggle clamp has been specially developed for use in ESD protection zones (EPA – electrostatic protected area) for working on electrostatically sensitive components, assemblies or devices in accordance with the standard DIN EN 61340-5-1.
Features:
- Leakage resistance according to DIN IEC/TR 61340-5-2 between 10⁰⁴ and 10⁰⁹ Ohm
- Discharge time according to DIN IEC/TR 61340-5-2 < 2 seconds
- Surface tension (electric field strength) according to DIN EN 61340-5-1 < 100 Volt
Note:
The ESD push-pull type toggle clamp is non-insulating. It must not be used in areas where open voltages are used.
| Order no. | 562494 |
|---|---|
| Product type | Push-pull type toggle clamp |
| Max. clamping force [kN] | 2 |
| Größe Schnellspanner | 2 |
| Material | Steel, galvanized |
| Handle color | Black |
| Special features | ESD |
