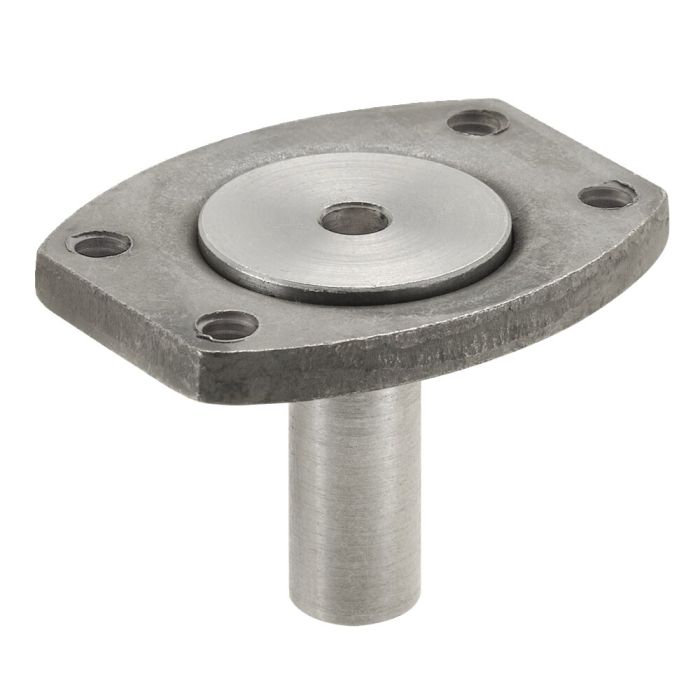

Flange with pipe socket
For piston pressure switch No. 6982-05, -06, -07 and -08
Order no.
497636
| Order no. | 497636 |
|---|---|
| Product type | Pressure switch |
| Max. operating pressure [bar] | 630 |
| Oil port | O-ring |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Piston Pressure Switch Nr. 492256 Electric-hydraulic, for O-ring connection, operating pressure 12-170 bar, actuation mechanical
- Piston Pressure Switch Nr. 136291 Electric-hydraulic, for O-ring connection, operating pressure 20-210 bar, actuation mechanical
- Piston Pressure Switch Nr. 402610 Electric-hydraulic, for O-ring connection, operating pressure 100-400 bar, actuation mechanical
- Piston Pressure Switch Nr. 276881 Electric-hydraulic, for O-ring connection, operating pressure 200-630 bar, actuation mechanical
- Screw-in fitting, straight, heavy-duty Nr. 175323 For steel tubes with outer diameter 8 mm and internal diameter 4 mm, with olive ring, max. operating pressure 630 bar
