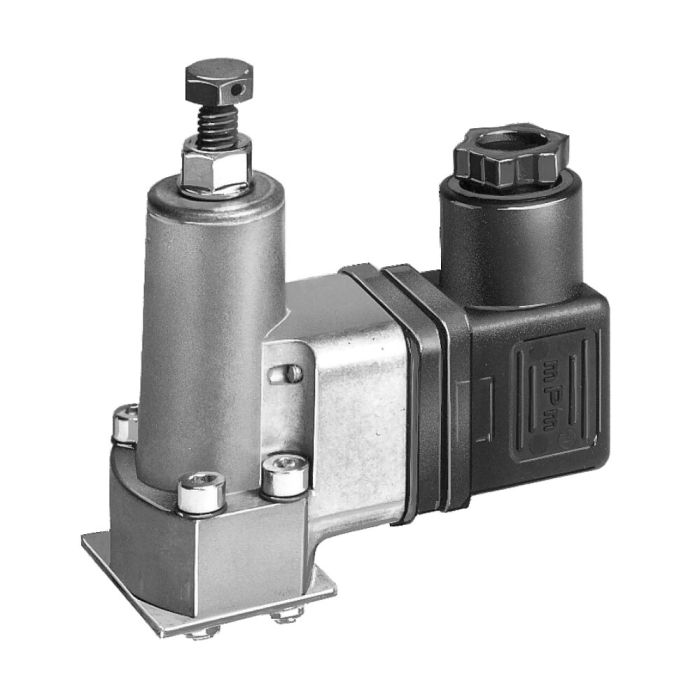

Piston Pressure Switch
Electric-hydraulic, for O-ring connection, operating pressure 100-400 bar, actuation mechanical
Order no.
402610
Design:
Microswitch. Design: Spring-loaded piston.
Application:
For electric-hydraulic pressure monitoring of a clamping circuit. The piston pressure switch can be mounted onto an adapter plate for tube connection.
Note:
Any built in position possible.
| Order no. | 402610 |
|---|---|
| Product type | Pressure switch |
| Max. operating pressure [bar] | 400 |
| Oil port | O-ring |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Screw-in fitting, straight, heavy-duty Nr. 175323 For steel tubes with outer diameter 8 mm and internal diameter 4 mm, with olive ring, max. operating pressure 630 bar
- Pivoting fitting, angled, heavy-duty Nr. 160358 For steel tubes with outer diameter 8 mm and internal diameter 4 mm, with olive ring, max. operating pressure 500 bar
- Screw-in fitting, straight, heavy-duty Nr. 160184 For steel tubes with outer diameter 8 mm and internal diameter 4 mm, with olive ring, max. operating pressure 630 bar
Similar products
- Piston Pressure Switch Nr. 568354 Electric-hydraulic, for O-ring connection, operating pressure 40-640 bar, actuation mechanical
