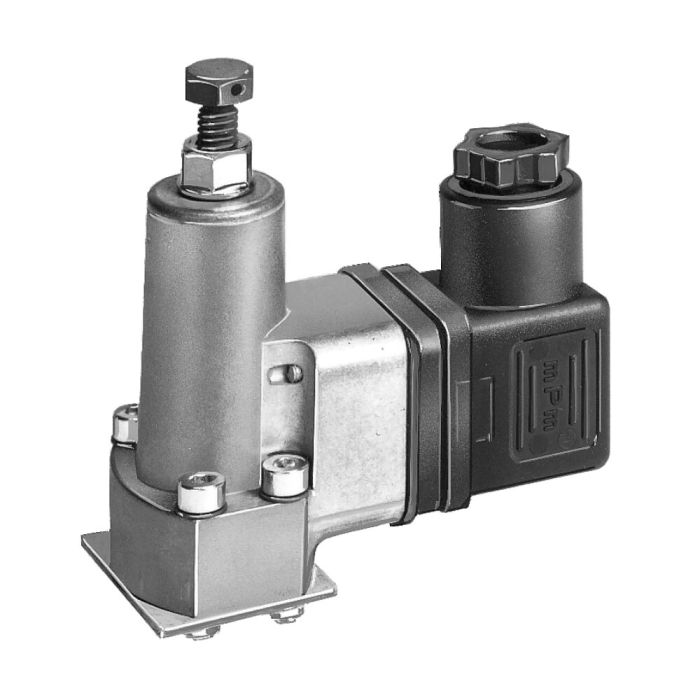

Piston Pressure Switch
Electric-hydraulic, for O-ring connection, operating pressure 200-630 bar, actuation mechanical
Order no.
276881
Design:
Microswitch. Design: Spring-loaded piston.
Application:
For electric-hydraulic pressure monitoring of a clamping circuit. The piston pressure switch can be mounted onto an adapter plate for tube connection.
Note:
Any built in position possible.
| Order no. | 276881 |
|---|---|
| Product type | Pressure switch |
| Max. operating pressure [bar] | 630 |
| Oil port | O-ring |
