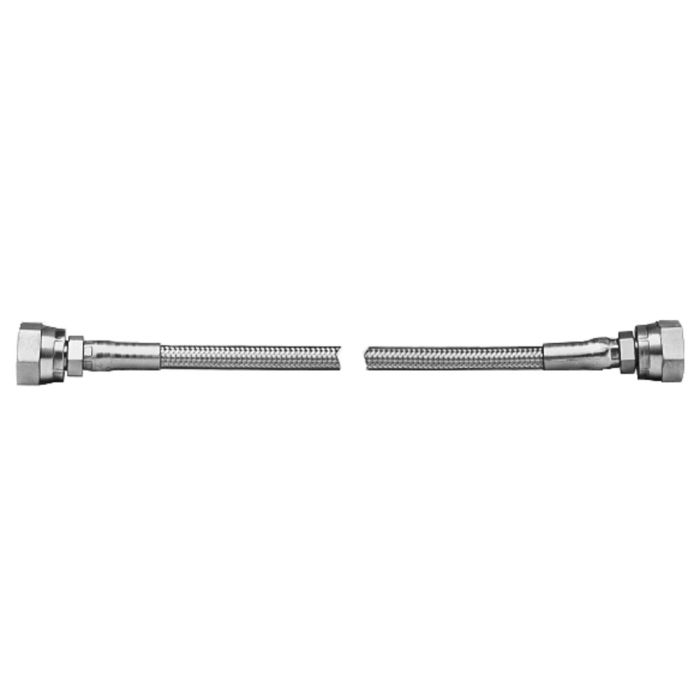

High Pressure Hose with steel-wire interlace
Design:
Steel fittings, galvanized and passivated. Hose of synthetic material with steel-wire braid galvanized.
Application:
Insert hose and tighten with 1/4 turn maximum.
Note:
We recommend only using the 3-metre long high pressure hose for double-acting elements. Fitting suitable for pipe connection No. 6994. The maximum service life must be 6 years but the maximum service life must not exceed 10 years. Date of manufacture (quarter/year) is printed on the hose. Serviceability must be assessed in accordance with established inspection criteria. See DIN 20066, section 5 for further details.
Bending radius = min. 80 mm
| Order no. | 68593 |
|---|---|
| Product type | High pressure hose and accessories |
| Max. operating pressure [bar] | 500 |
| Oil port | Thread |
