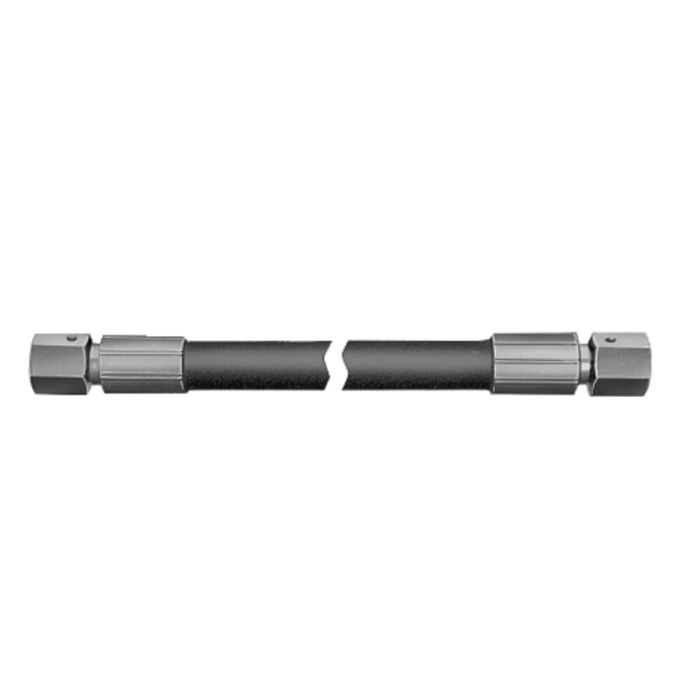

High Pressure Hose
For thread connection, max. operating pressure 400 bar, length 2000 mm
Order no.
68544
Design:
Steel fittings, galvanized and passivated.
Note:
This high pressure hose is especially selected for clamping on machine tools. It contains two steel wire reinforcements which guarantee that there is no loss of oil even if the external rubber is damaged. The maximum service life must be 6 years but the maximum service life must not exceed 10 years. Date of manufacture (quarter/year) is printed on the hose. Serviceability must be assessed in accordance with established inspection criteria. See DIN 20066, section 5 for further details.
Bending radius = min. 100 mm
| Order no. | 68544 |
|---|---|
| Product type | High pressure hose and accessories |
| Max. operating pressure [bar] | 400 |
| Oil port | Thread |
