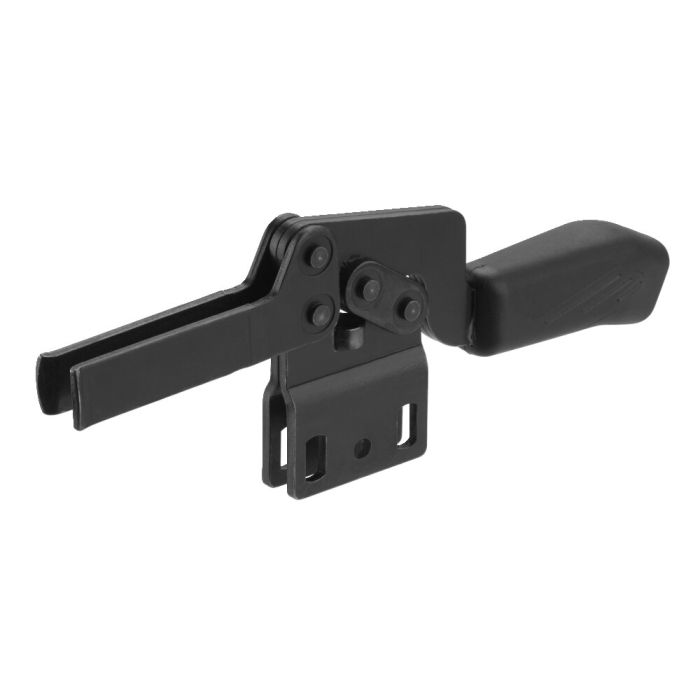

Horizontal toggle clamp with open-holder, black
With open clamping arm and vertical, open base, size 2, max. clamping force 1,2 kN
Order no.
565863
Application:
This clamp can be loaded a the forward position on the clamping arm (F1) with an additional weight of up to 350 g without causing the open clamping arm to close again. The clamping arm remains open even if the clamp is installed in an inclined position.
This clamp is especially suitable for hard-to-reach areas, as an additional unlock mechanism does not have to be actuated.
Note:
These clamps are suitable for photogrammetric use. The matt-black surface of the clamps prevents reflection while photographing. For a suitable clamping arm extension, see no. 6896.
| Order no. | 565863 |
|---|---|
| Product type | Horizontal toggle clamp |
| Max. clamping force [kN] | 1.2 |
| Größe Schnellspanner | 2 |
| Material | Steel, galvanized |
| Foot alignment | Vertical |
| Handle color | Black |
| Special features | Open-holder |
