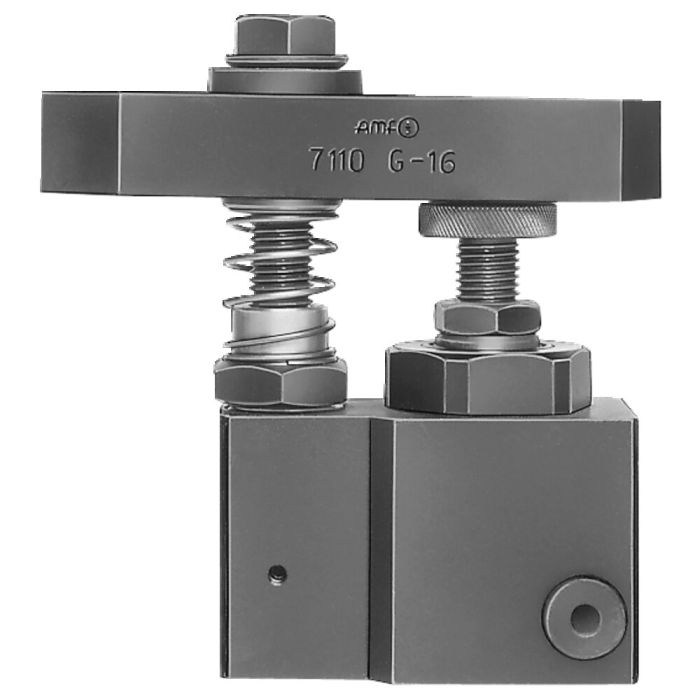

Hydraulic Clamping Element
Clamping range 95-128 mm (Typ 16), max. clamping force 30 kN*, stroke 7 mm
Order no.
65953
Note:
For single acting cylinder types there is a risk of sucking coolant at the return stroke. In this case the cylinders have to be protected against the direct effect of coolant. The built-in sintered bronze filter should therefore be arranged so that it is protected, or covered.
*Maximum clamping force by lever ratio 1:1
| Order no. | 65953 |
|---|---|
| Operating mode | Hydraulic |
| Type | 16 |
| Max. height [mm] | 128 |
| Min. height [mm] | 95 |
