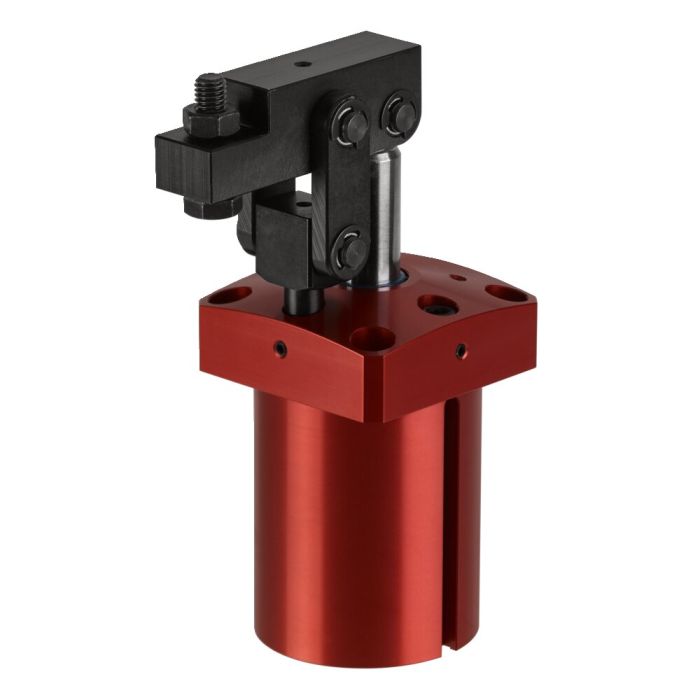

Link clamp, pneumatic, flange version
With sensor groove and magnetic piston for end-position monitoring, size 63, max. clamping force 1,35 kN
Order no.
562509
Note:
The lever mechanism can be dismantled so that it can be individually modified.
Can only be operated with oiled air.
Suitable proximity switches for end-position monitoring are available using order no. 392241.
Version: PUR cable 0.3 m with M8 plug connection and rotatable knurled nuts.
Switching function: NOC.
Output: PNP.
F3 = at 6 bar max. permissible operating pressure
| Order no. | 562509 |
|---|---|
| Product type | Link clamp |
| Max. clamping force [kN] | 1.35 |
| Größe Schnellspanner | 63 |
| Material | Aluminium, red anodised |
