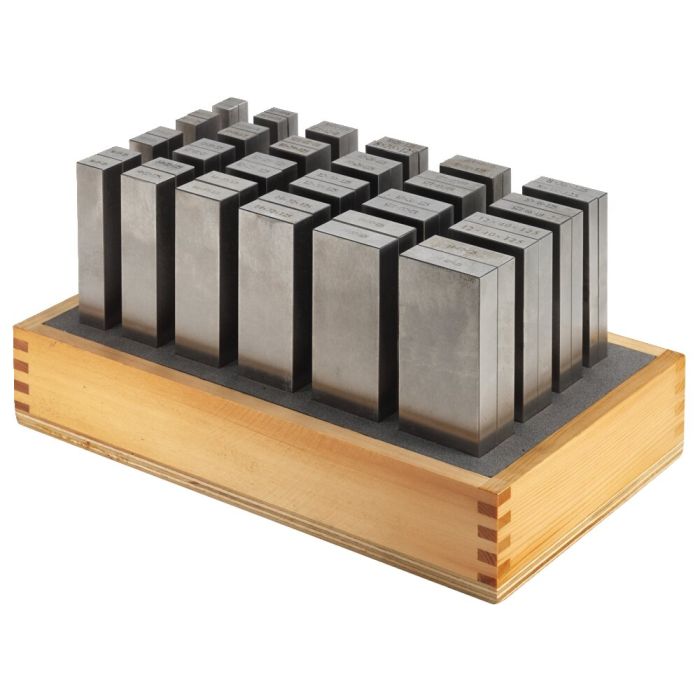

Parallel support set in wooden stand
Design:
Size 100, content per 1 pair (WxH):
2x5 / 2x10/ 2x15/ 2x20/ 3x6 / 3x11 / 3x16 / 3x21 / 4x7 / 4x12 / 4x17 / 4x22 / 5x8 / 5x13 / 5x18 / 5x23 / 6x9 / 6x14 / 6x19 / 6x24 mm
Size 125 and 150, content per 1 pair (WxH):
8x11 / 8x16 / 8x21 / 8x26 / 8x31 / 8x36 / 10x13 / 10x18 / 10x23 / 10x28 / 10x33 / 10x38 / 12x15 / 12x20 / 12x25 / 12x30 / 12x35 / 12x40 / 14x17 / 14x22 / 14x27 / 14x32 / 14x37 / 14x42 mm
Quality level:
SP = Super-precision, P = Precision, S = Standard
Application:
These documents are used as washers for workpieces exposed to diverse machining processes. The high precision of the parallel washers guarantees parallel workpiece clamping.
Note:
Remaining dimensions according to DIN ISO 2768 - m.
Size data on front of product.
Advantage:
- high wear resistance and long service life
- wooden box for perfect handling at the workplace and safe storage
- different quality levels for any application
| Order no. | 371096 |
|---|---|
| Product type | Parallel supports |
| Quality level | 1 - Standard |
| Length [mm] | 100 |
| Special features | Set |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
- Parallel support set in wooden box Nr. 558281 Quality Standard, with 14 pairs of parallel supports, heights 14-50 mm
- Parallel supports-set Nr. 72348 Quality Super-Precision, size 8-400, over 40 different heights 8-113 mm
-
- Parallel supports-set, corrugated Nr. 372821 Quality Super-Precision, length 110, width 0,3 mm, height 9-23 mm
