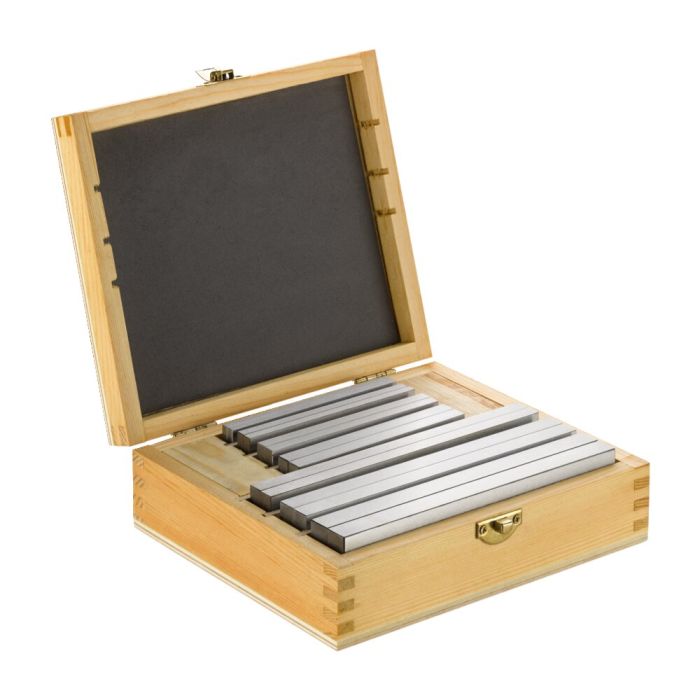

Parallel supports-set
Note:
Workshop sets
Size 2.5-25 including (BxHxL):
2.5x8x63 / 3.2x10x63 / 4.0x12x63 / 5.0x16x63 / 6.3x20x63 / 4.0x12x100 / 5.0x16x100 / 6.3x20x100 / 8.0x25x100 mm
Size 4.0-40 including (BxHxL):
4.0x12x100 / 5.0x16x100 / 6.3x20x100 / 8.0x25x100 / 8.0x25x160 / 10.0x32x160 / 12.0x40x160 mm
Size 8.0-63 including (BxHxL):
8.0x25x100 / 10.0x32x100 / 12.0x40x100 / 16.0x50x160 / 20.0x63x160 mm
Size 20-100 including (BxHxL):
20.0x63x250 / 25.0x80x250 / 32.0x100x250 mm
Vice sets
Size 4.0-32 including (BxHxL):
4.0x12x100 / 5.0x16x100 / 6.3x20x100 / 8.0x25x100 / 10.0x32x100 mm
Size 8.0-50 including (BxHxL):
8.0x25x160 / 10.0x32x160 / 12.0x40x160 / 16.0x50x160 mm
| Order no. | 72322 |
|---|---|
| Product type | Parallel supports |
| Quality level | 3 - Super-Precision |
| Special features | Set |
