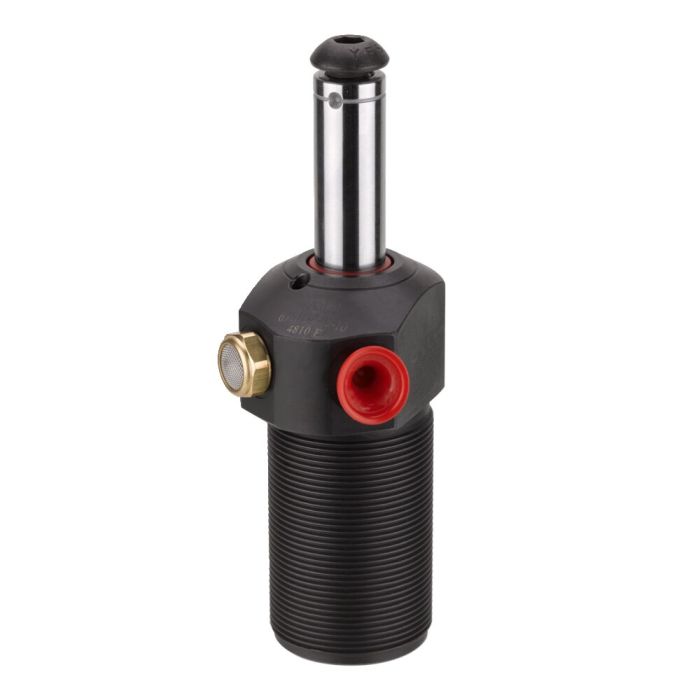

Pull Cylinder, thread-flange-mounting, with guided piston rod

Max. piston force 2,2 kN, max. stroke 14,5 mm, single acting

Order no.

66605

Product variants

Order no.	Article no.	Pull force at 350 bar [kN]	Stroke [mm]	Vol. pull [cm³]	Q max. [l/min]	Weight [g]
66605	6951GZ-02-10	2,2	14,5	0,92	0,165	308
66670	6951GZ-05-10	6,6	20,0	3,82	0,400	771
66712	6951GZ-11-10	13,9	29,5	11,90	1,640	1424

Order no.	A	C	D	F	G	Øh	J x depth	P	S	dia. T	V	W	Z°	ØAD	AC
66605	M28x1,5	102	44	25,5	13	11,13	M6 x 7	32	20,5	38	14	2	25°	3,2	G1/8
66670	M38x1,5	134	60	31	13	15,88	M10 x 12	38	26	47,5	19,5	2,41	35°	4,8	G1/8
66712	M48x1,5	172	79	32	13	22,23	M12 x 13	47,5	31,5	60	25,5	2,22	30°	4,8	G1/4

Details

Design:
Cylinder barrel from steel, hardened and burnished. Piston rod case hardened and chrome plated. Piston rod with internal thread and clamping arm positioning. Wiper at piston rod. Return spring from stainless steel. Oil supply via threaded port.

Application:
Universal Push-Pull Cylinder for various applications.

Features:
Each model is available for single or double acting operation. The internal thread at piston rod allows mounting of attachments like clamping arms and set screws.

Note:
The piston is guided, therefore, the max. permissable oil flow rate Q max. must be observed in order to protect the mechanism. No force must be introduced at the piston when mounting accessory. For single acting cylinders there is risk of sucking in coolant through the breather port. In such cases the breather port has to be piped to a clean protected area. The system has to be completely vented during installation. Suitable flange nuts DIN 70852.

Technical specifications
