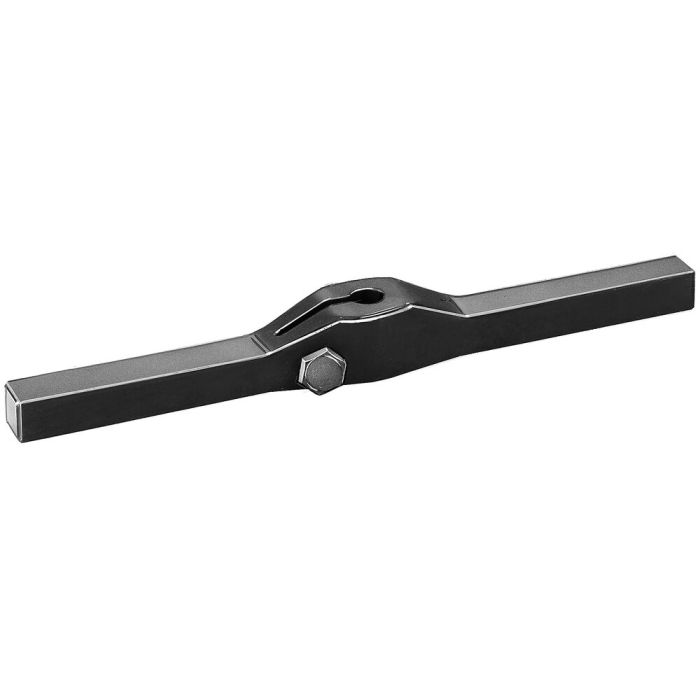

Swing Clamp Arm, double ended
For sizes 6951xx-02-xx, 6952EP-02-xx
Order no.
69252
Design:
Tempered and blued steel.
Application:
For all swing clamps
order no. 69252 for sizes 6951xx-02-xx, 6952EP-02-xx
order no. 69278 for sizes 6951xx-05-xx, 6952CP-06-xx, 6941KP-03-xx
order no. 69294 for sizes 6951xx-11-xx, 6941KP-05-xx
Clamp arm can be shortened for your application.
Note:
Clamping pressure, flow volume and clamping arm weight must be observed. It is also essential that clamping or support heights in either side are identical. Special versions available on request.
| Order no. | 69252 |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Swing Clamp, thread-flange-mounting Nr. 68619 Max. clamping force 2 kN, max. stroke 14,5 mm, single acting, right-pivoting
- Swing Clamp, thread-flange-mounting Nr. 68650 Max. clamping force 2 kN, max. stroke 14,5 mm, double acting, right-pivoting
- Swing clamp, top-flange-mounting, precision design Nr. 327734 Max. clamping force 2 kN, max. stroke 14 mm, single acting, right-pivoting
- Swing clamp, top-flange-mounting, precision design Nr. 327841 Max. clamping force 2 kN, max. stroke 14 mm, double acting, right-pivoting
- Swing clamp, base-flange-mounting, precision design Nr. 327775 Max. clamping force 2 kN, max. stroke 14 mm, single acting, right-pivoting
- Swing clamp, base-flange-mounting, precision design Nr. 327890 Max. clamping force 2 kN, max. stroke 14 mm, double acting, right-pivoting
