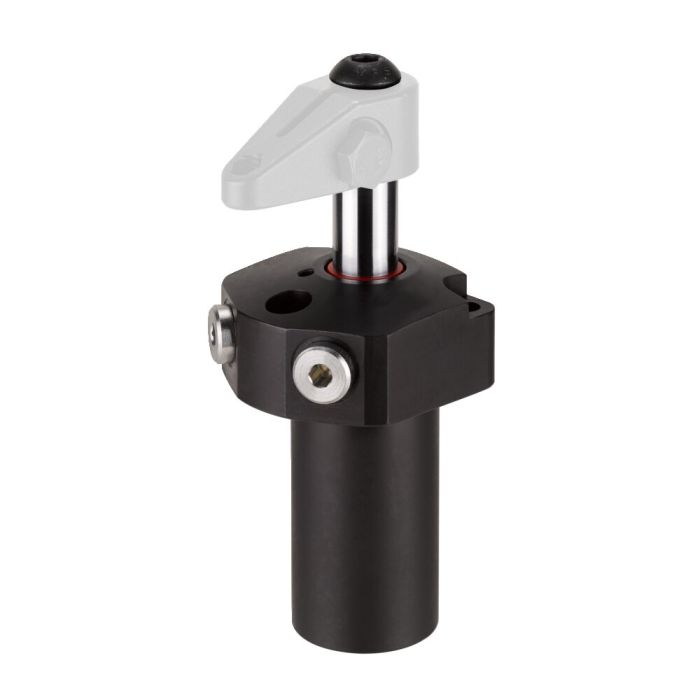

Swing clamp, top-flange-mounting, precision design

Max. clamping force 2 kN, max. stroke 14 mm, double acting, right-pivoting

Order no.

327841

Order no.	Article no.	Clamping force at 350 bar Sp* [kN]	Clamping force at 350 bar Lo* [kN]	Clamping stroke M [mm]	Total stroke N [mm]	Vol. Sp [cm³]	Vol. Lo [cm³]	Eff. piston area Sp [cm²]	Eff. piston area Lo [cm²]	Q max. * [l/min]	Weight [g]
327841	6951KP-02-21	2,0	5,1	5,5	14,0	0,92	2,3	0,63	1,60	0,276	358
327866	6951KP-02-22	2,0	5,1	5,5	14,0	0,92	2,3	0,63	1,60	0,276	358
327882	6951KP-05-21	4,9	10,0	8,0	20,0	3,82	7,8	1,90	3,88	0,764	871
327908	6951KP-05-22	4,9	10,0	8,0	20,0	3,82	7,8	1,90	3,88	0,764	871
327924	6951KP-11-21	11,6	18,2	13,0	29,5	11,90	23,0	4,04	7,92	1,785	1465
327940	6951KP-11-22	11,6	18,2	13,0	29,5	11,90	23,0	4,04	7,92	1,785	1465
562237	6951KP-05-210	4,9	10,0	19,0	31,0	5,90	11,96	1,90	3,88	0,764	1114
562238	6951KP-05-220	4,9	10,0	19,0	31,0	5,90	11,96	1,90	3,88	0,764	1114
562239	6951KP-11-210	11,6	18,2	34,0	51,0	20,48	40,15	4,04	7,92	1,785	2223
562240	6951KP-11-220	11,6	18,2	34,0	51,0	20,48	40,15	4,04	7,92	1,785	2223

Order no.	dia. a	b	C	D	E	F	G	Øh	J x depth	Dia. K	L	m	N	P	dia. Q	R	S	T	U	V	W	X	Y	Z°	AC	BB	ØAD	dia. CC	OR-1 O-ring Order No.
327841	25,2	108	101,5	44	31,0	26	13,0	11,13	M6x7	6	10,5	5,5	14,0	45,0	20,0	10,0	31,0	47	18,0	15,5	-	17,3	18,2	30,0	G1/8	M5	3,2	26	183608
327866	25,2	108	101,5	44,0	31,0	26	13,0	11,13	M6x7	6	10,5	5,5	14,0	45,0	20,0	10,0	31,0	47	18,0	15,5	-	17,3	18,2	30,0	G1/8	M5	3,2	26	183608
327882	36,3	143	134,0	64,5	31,5	27	13,0	15,88	M10x12	7	20,5	8,0	20,0	57,0	25,0	12,5	33,5	54	19,0	19,0	-	21,7	14,4	30,0	G1/8	M6	4,8	37	183608
327908	36,3	143	134,0	64,5	31,5	27	13,0	15,88	M10x12	7	20,5	8,0	20,0	57,0	25,0	12,5	33,5	54	19,0	19,0	-	21,7	14,4	30,0	G1/8	M6	4,8	37	183608
327924	44,2	185	172,0	81,0	36,0	30	14,5	22,23	M12x13	9	11,8	13,0	29,5	55,5	29,7	21,0	42,0	71	22,1	27,5	21	21,0	28,6	22,5	G1/4	M8	4,8	45	173096
327940	44,2	185	172,0	81,0	36,0	30	14,5	22,23	M12x13	9	11,8	13,0	29,5	55,5	29,7	21,0	42,0	71	22,1	27,5	21	21,0	28,6	22,5	G1/4	M8	4,8	45	173096
562237	36,3	177	167,0	86,5	31,5	27	13,0	15,88	M10x12	7	20,5	19,0	31,0	57,0	25,0	12,5	33,5	54	19,0	19,0	-	21,7	14,4	30,0	G1/8	M6	4,8	37	183608
562238	36,3	177	167,0	86,5	31,5	27	13,0	15,88	M10x12	7	20,5	19,0	31,0	57,0	25,0	12,5	33,5	54	19,0	19,0	-	21,7	14,4	30,0	G1/8	M6	4,8	37	183608
562239	47,4	249	236,0	123,5	36,0	30	14,5	22,23	M12x13	9	11,8	34,0	51,0	55,5	29,7	21,0	42,0	71	22,1	27,5	21	21,0	28,6	22,5	G1/4	M8	4,8	48	173096
562240	47,4	249	236,0	123,5	36,0	30	14,5	22,23	M12x13	9	11,8	34,0	51,0	55,5	29,7	21,0	42,0	71	22,1	27,5	21	21,0	28,6	22,5	G1/4	M8	4,8	48	173096
