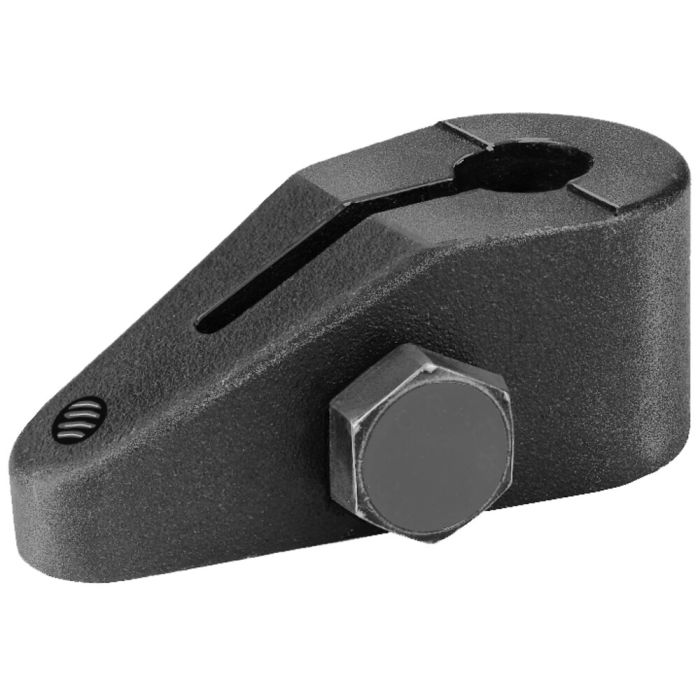

Swing Clamp Arm, standard
For sizes 6951xx-02-xx, 6952EP-02-xx
Order no.
68973
Design:
Steel, blued. Clamping arm tempered.
Application:
For all swing clamps
order no. 320457 for sizes 6951xx-02-xx, 6952EP-02-xx
order no. 320465 for sizes 6951xx-05-xx, 6952CP-06-xx, 6941KP-03-xx
order no. 320473 for sizes 6951xx-11-xx, 6941KP-05-xx
Used for clamping two workpieces with different heights.
Note:
Clamping pressure and maximum tilt angle (W) must not be exceeded. Special versions are available on request.
| Order no. | 68973 |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Swing Clamp, thread-flange-mounting Nr. 68619 Max. clamping force 2 kN, max. stroke 14,5 mm, single acting, right-pivoting
- Swing Clamp, thread-flange-mounting Nr. 68650 Max. clamping force 2 kN, max. stroke 14,5 mm, double acting, right-pivoting
- Swing clamp, top-flange-mounting, precision design Nr. 327734 Max. clamping force 2 kN, max. stroke 14 mm, single acting, right-pivoting
- Swing clamp, top-flange-mounting, precision design Nr. 327841 Max. clamping force 2 kN, max. stroke 14 mm, double acting, right-pivoting
- Swing clamp, base-flange-mounting, precision design Nr. 327775 Max. clamping force 2 kN, max. stroke 14 mm, single acting, right-pivoting
- Swing clamp, base-flange-mounting, precision design Nr. 327890 Max. clamping force 2 kN, max. stroke 14 mm, double acting, right-pivoting
