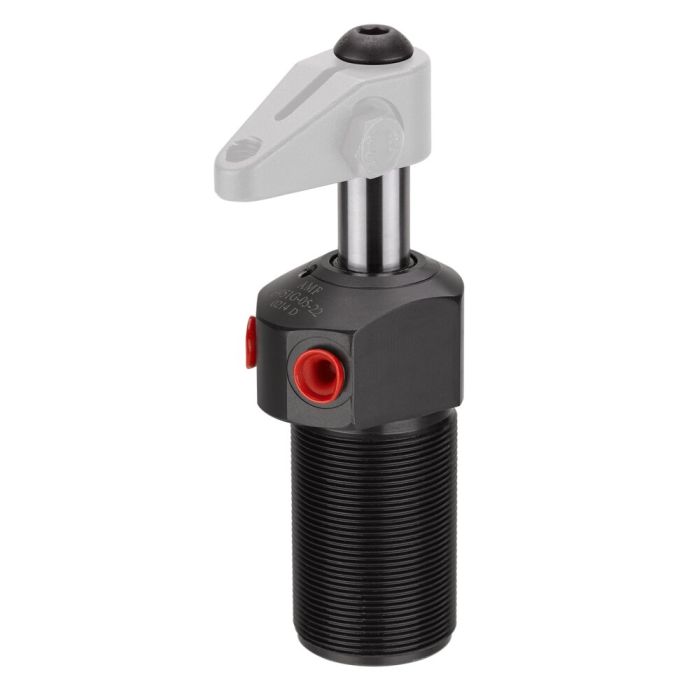

Swing Clamp, thread-flange-mounting
Max. clamping force 2 kN, max. stroke 14,5 mm, double acting, right-pivoting
Order no.
68650
Design:
Tempered and blued steel.
Application:
For all swing clamps
order no. 68973 for sizes 6951xx-02-xx, 6952EP-02-xx
order no. 559217 for sizes 6941KP-04-xx
order no. 68999 for sizes 6951xx-05-xx, 6952CP-06-xx, 6941KP-03-xx
order no. 556974 for sizes 6952CP-08-xx
order no. 69070 for sizes 6951xx-11-xx, 6941KP-05-xx
order no. 556975 for sizes 6952CP-15-xx, 6941KP-09-xx
Note:
Clamping pressure, flow volume and clamping arm weight must be observed. Special versions available on request.
| Order no. | 68650 |
|---|---|
| Max. clamping force [kN] | 5.6 |
| Type of actuation | Double acting |
| Stroke [mm] | 14.5 |
| Mounting | Thread-flange-mounting |
| Swing direction | Right swinging |
