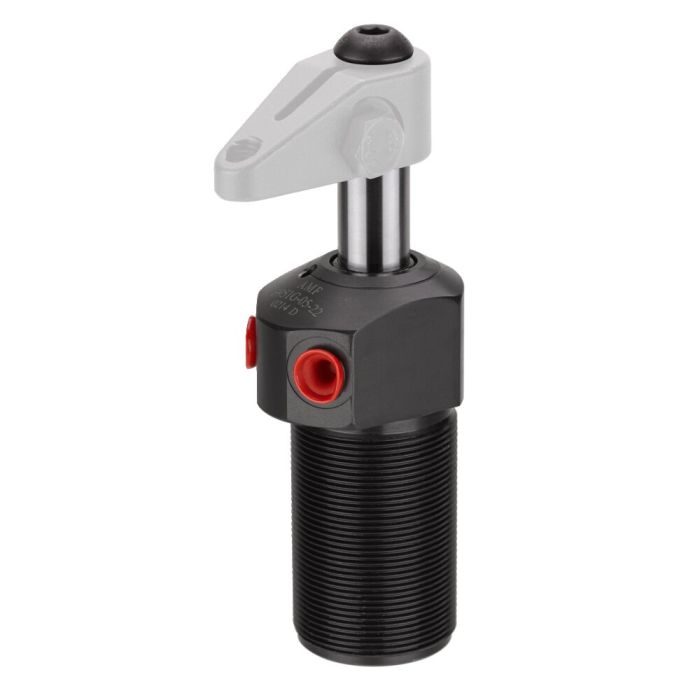

Swing Clamp, thread-flange-mounting

Max. clamping force 5 kN, max. stroke 31 mm, double acting, left-pivoting, long clamping stroke

Order no.

68478

Product variants

Order no.	Article no.	Clamping force at 350 bar Sp* [kN]	Clamping force at 350 bar Lo* [kN]	Clamping stroke M [mm]	Total stroke N [mm]	Vol. Sp [cm³]	Vol. Lo [cm³]	Eff. piston area Sp [cm²]	Eff. piston area Lo [cm²]	Q max. [l/min]	Weight [g]
68452	6951G-05-210	5	13,5	19	31,0	5,90	11,9	1,90	3,88	0,400	850
68460	6951G-11-21	11	27,7	13	29,5	11,90	23,0	4,04	7,92	1,640	1379
68478	6951G-05-220	5	13,5	19	31,0	5,90	11,9	1,90	3,88	0,400	850
68486	6951G-11-22	11	27,7	13	29,5	11,90	23,0	4,04	7,92	1,640	1379
68502	6951G-11-210	11	27,7	34	51,0	20,50	40,0	4,04	7,92	1,640	1941
68627	6951G-11-220	11	27,7	34	51,0	20,50	40,0	4,04	7,92	1,640	1941
68650	6951G-02-21	2	5,6	6	14,5	0,92	2,3	0,63	1,60	0,165	300
68676	6951G-02-22	2	5,6	6	14,5	0,92	2,3	0,63	1,60	0,165	300
68734	6951G-05-21	5	13,5	8	20,0	3,82	7,8	1,90	3,88	0,400	744
68759	6951G-05-22	5	13,5	8	20,0	3,82	7,8	1,90	3,88	0,400	744

Order no.	A	b	C	D	E	F	G	Øh	J x depth	P	S	dia. T	V	W	Z°	AC	AD
68452	M38x1,5	176,5	167,0	82,5	35,5	31,0	13	15,88	M10 x 12	38,0	26,0	47,5	19,5	2,41	35°	G1/8	4,8
68460	M48x1,5	185,0	172,0	79,0	38,0	32,0	13	22,23	M12 x 13	47,5	31,5	60,0	25,5	2,22	30°	G1/4	4,8
68478	M38x1,5	176,5	167,0	82,5	35,5	31,0	13	15,88	M10 x 12	38,0	26,0	47,5	19,5	2,41	35°	G1/8	4,8
68486	M48x1,5	185,0	172,0	79,0	38,0	32,0	13	22,23	M12 x 13	47,5	31,5	60,0	25,5	2,22	30°	G1/4	4,8
68502	M48x1,5	249,0	235,5	121,5	38,0	32,0	13	22,23	M12 x 13	47,5	31,5	60,0	25,5	2,22	30°	G1/4	4,8
68627	M48x1,5	249,0	235,5	121,5	38,0	32,0	13	22,23	M12 x 13	47,5	31,5	60,0	25,5	2,22	30°	G1/4	4,8
68650	M28x1,5	108,0	102,0	44,0	30,5	25,5	13	11,13	M6 x 7	32,0	20,5	38,0	14,0	2,0	25°	G1/8	3,2
68676	M28x1,5	108,0	102,0	44,0	30,5	25,5	13	11,13	M6 x 7	32,0	20,5	38,0	14,0	2,0	25°	G1/8	3,2
68734	M38x1,5	143,0	134,0	60,0	36,0	31,0	13	15,88	M10 x 12	38,0	26,0	47,5	19,5	2,41	35°	G1/8	4,8
68759	M38x1,5	143,0	134,0	60,0	36,0	31,0	13	15,88	M10 x 12	38,0	26,0	47,5	2,41	19,5	35°	G1/8	4,8

Details

Design:
Tempered and blued steel.

Application:
For all swing clamps
order no. 68973 for sizes 6951xx-02-xx, 6952EP-02-xx
order no. 559217 for sizes 6941KP-04-xx
order no. 68999 for sizes 6951xx-05-xx, 6952CP-06-xx, 6941KP-03-xx
order no. 556974 for sizes 6952CP-08-xx
order no. 69070 for sizes 6951xx-11-xx, 6941KP-05-xx
order no. 556975 for sizes 6952CP-15-xx, 6941KP-09-xx

Note:
Clamping pressure, flow volume and clamping arm weight must be observed. Special versions available on request.

Technical specifications

More Information
Order no.	68478
Max. clamping force [kN]	13.5
Type of actuation	Double acting
Stroke [mm]	31
Mounting	Thread-flange-mounting
Swing direction	Left swinging

CAD

Downloads

Pimcore content from synoa_downloadsnk_downloads_tab_top

Area	Language	File name	Type	File size

Pimcore content from synoa_downloadsnk_downloads_tab_bottom
