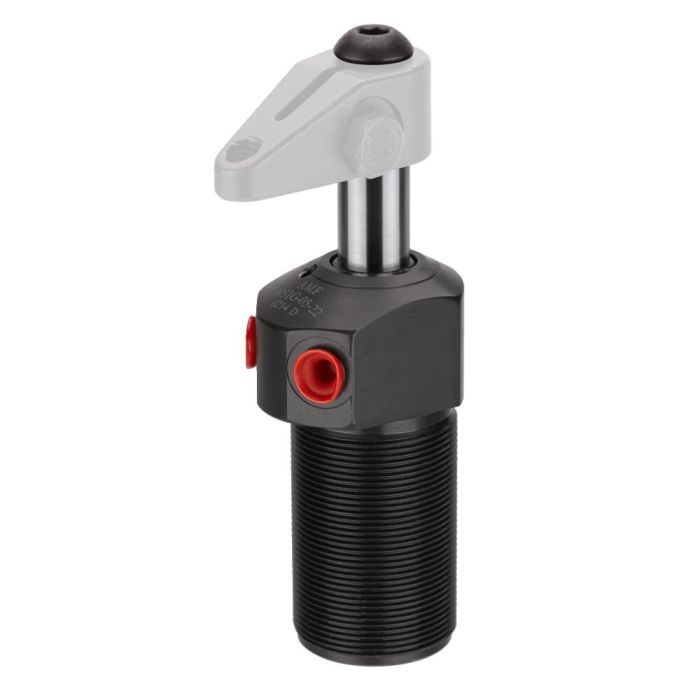

Swing Clamp, thread-flange-mounting

Design:
Cylinder barrel made of steel, hardened and burnished. Piston rod case hardened and chrome plated. Piston rod with internal thread and clamp arm positioning. Wiper at the piston rod. Clamp arm not supplied as standard. Oil supply via threaded port.

Application:
Swing clamps are used particularly in fixtures in which the workpiece must be freely accessible and placed from above. Workpieces with difficult shapes can also be clamped using special clamp arms (available on request).

Features:
Each cylinder size is available for single or double-acting operation. The swing motion employs a patented ball guide mechanism.

Note:
The piston stoke is guided, respect Q max. volume flow. Clamping arm length and clamping arm weight must be strictly observed. No force may be applied to the piston when mounting accessories to it. When placing into operation, ensure that all air is bled from the system. Grooved nuts DIN 70852 can also be used for attachment.
Other swivel angles are available on request.

Cl = clamping, Rel = release, ending of item no.: -21 = dual-action, right-pivoting / -22 = dual-action, left-pivoting / -210 = dual-action, right-pivoting, long clamping stroke / -220 = dual-action, left-pivoting, long clamping stroke

* details with clamp arm, standard
