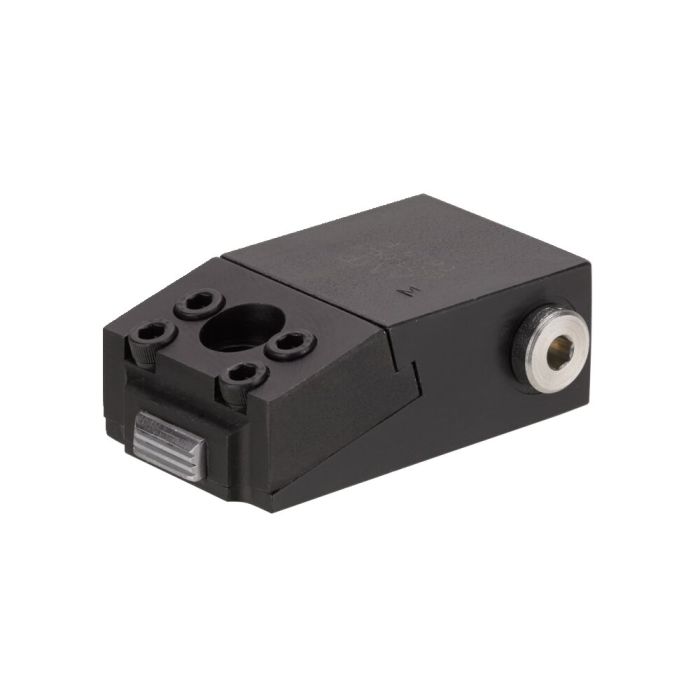

Pull-Down Clamp
Max. operating pressure 350 bar, max. clamping force 8,9 kN, stroke 5 mm, single acting, depth 73 mm
Order no.
66787
Design:
Cylinder barrel from steel, hardened and burnished. Piston rod case hardened and ground. Hardened clamping jaw. Return spring from stainless steel. Oil supply via threaded connection or oil channel in the fixture body.
Application:
Universal Edge Clamp for various applications.
Features:
Small unit offering large clamping force.
Note:
When placing into operation, ensure that all air is bled from the system.
The surface quality of No. 6973-09-2 must be Rz 6.3 at the mating flange surface.
| Order no. | 66787 |
|---|---|
| Product type | Pull-down clamp |
| Max. clamping force [kN] | 8.9 |
| Max. operating pressure [bar] | 350 |
| Type of actuation | Single acting |
| Stroke [mm] | 2.2 |
