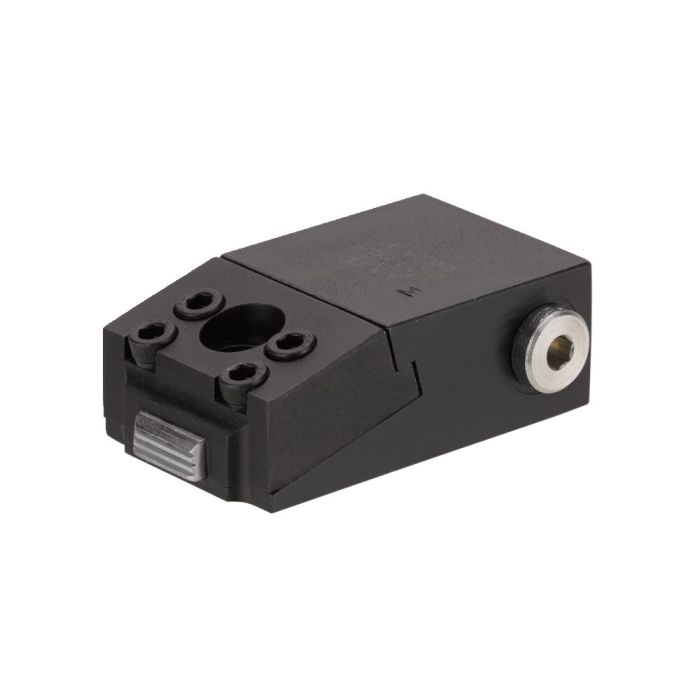

Pull-Down Clamp
Max. operating pressure 350 bar, max. clamping force 8,9 kN, stroke 5 mm, single acting, depth 63,5 mm
Order no.
66803
Design:
Housing made of steel, burnished. Tension slide hardened. Integrated flow rate restrictor, grooved clamping jaw. Oil supply via oil channel in fixture body.
Application:
For clamping workpieces in a linear direction. Compact design. The workpiece can be clamped sensitively thanks to the adjustable flow rate restrictor.
Features:
High flexibility through individually designed and exchangeable clamping jaws.
Note:
The installation hole must be free of burrs. Seals and housings must be greased during installation. Avoid chips from gathering via oil channels.
| Order no. | 66803 |
|---|---|
| Product type | Pull-down clamp |
| Max. clamping force [kN] | 8.9 |
| Max. operating pressure [bar] | 350 |
| Type of actuation | Single acting |
| Stroke [mm] | 2.2 |
