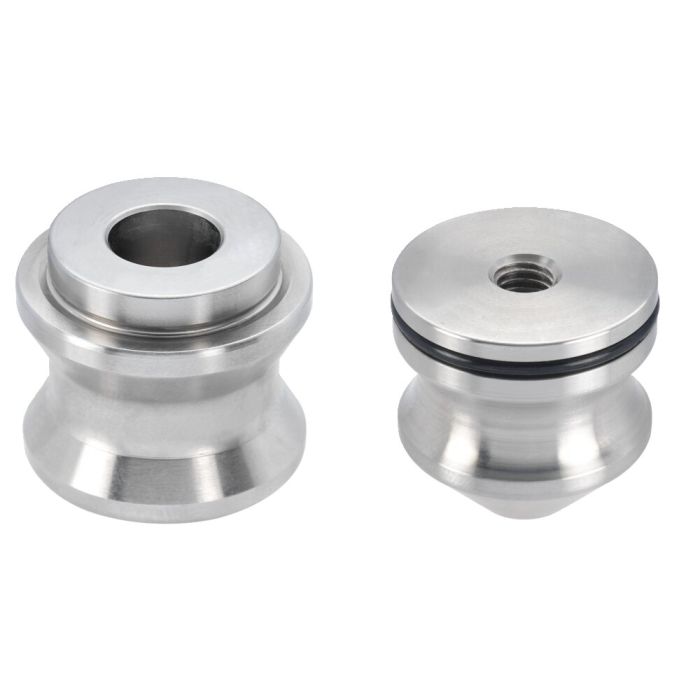

Pull-stud size 20 for M16 engagement screw with reduced fitting collar
For clamping modules size 20, undersize pull-stud
Order no.
562771
Design:
Order no. 562768: zero point pull-stud, order no. 562769: timing pull-stud,
order no. 562771: undersize pull-stud, order no. 303172: protection pull-stud
Application:
For clamping in a fitting hole with a reduced diameter e.g. before heat treatment of a workpiece. After the boring out the hole, the respective standard pull-stud can be used.
Note:
The timing pull-stud has an additional alignment bore, which can optionally be used for simple installation.
On request:
Protection pull-stud made of plastic.
| Order no. | 562771 |
|---|---|
| Product type | Pull-studs |
| Operating mode | Mechanical, Hydraulic, Pneumatic |
| Size clamping module | 20 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Installation clamping module for automation solutions Nr. 550262 Pneumatic opening, size KP20.3, with locking control, opening control, support control, pull-stud sensing and insular support
Similar products
- Pull-stud size 20 for M16 engagement screw Nr. 554941 For clamping modules size 20, undersize pull-stud
- Pull-stud size 20 for M10 and M12 engagement screw Nr. 303164 For clamping modules size 20, undersize pull-stud
- Pull-stud size 20 for M12 engagement screw without fitting collar Nr. 562767 For clamping modules size 20, suitable for engagement screw 6370ZNSF
