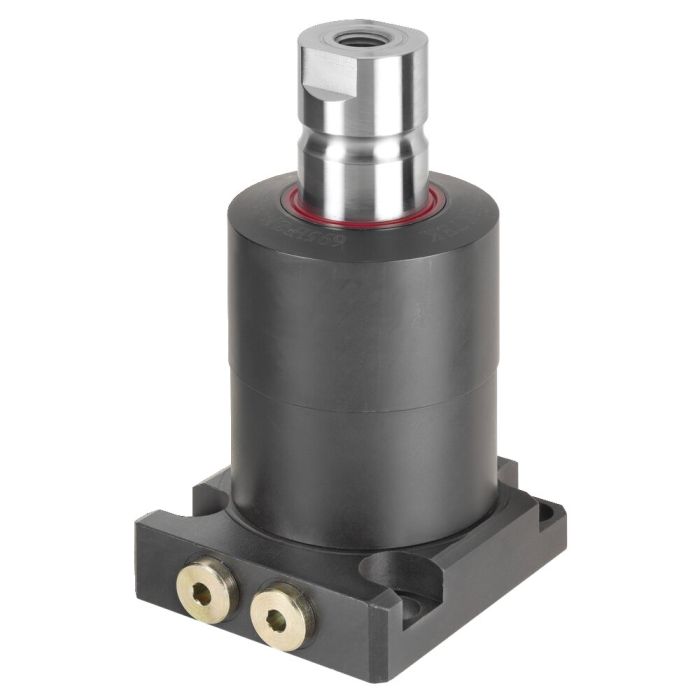

Push-Pull Cylinder, base-flange-mounting, with guided piston rod
Design:
Cylinder barrel from steel, hardened and burnished. Piston rod case hardened and chrome plated. Piston rod with internal thread and clamping arm positioning. Wiper at piston rod. Oil supply via threaded port.
Application:
Universal Push-Pull Cylinder for various applications.
Features:
Each model is available for single or double acting operation. The internal thread at piston rod allows mounting of attachments like clamping arms and set screws.
Note:
The piston is guided, therefore, the max. permissable oil flow rate Q max. must be observed in order to protect the mechanism. No force must be introduced at the piston when mounting accessory. For single acting cylinders there is risk of sucking in coolant through the breather port. In such cases the breather port has to be piped to a clean protected area. The system has to be completely vented during installation. Suitable flange nuts DIN 70852.
| Order no. | 327114 |
|---|---|
| Max. clamping force [kN] | 54 |
| Max. operating pressure [bar] | 350 |
| Type of actuation | Double acting |
| Stroke [mm] | 28 |
