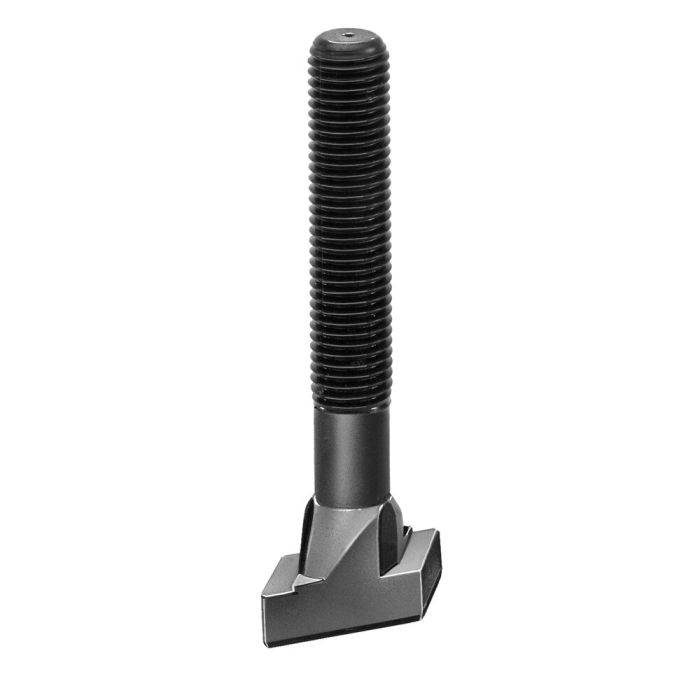

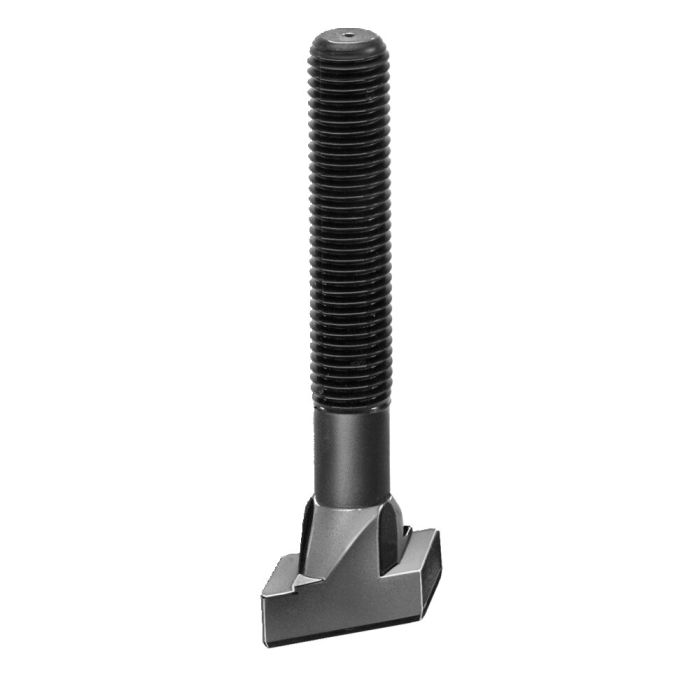

Rhombus-head screws for T-slots Strength class 8.8, thread M16, slot 18 mm, length 400 mm
Order no. D x Slot x L Strength class A b E k Weight Availability Your Price 86793 M20x22x 80 8,8 21,7 55 35 14 330
86801 M20x22x125 8,8 21,7 85 35 14 430
86819 M20x22x200 8,8 21,7 120 35 14 570
86959 M24x28x125 8,8 27,7 85 44 18 770
87114 M24x28x250 8,8 27,7 150 44 18 1120
87296 M12x14x 50 8,8 13,7 35 22 8 70
87312 M12x14x 80 8,8 13,7 55 22 8 100
87338 M12x14x125 8,8 13,7 75 22 8 120
87353 M16x18x 63 8,8 17,7 45 28 10 160
87379 M16x18x100 8,8 17,7 65 28 10 220
87395 M16x18x160 8,8 17,7 100 28 10 280
Advantage: Benefits of thread rolling:
* Size not included in DIN, dimensions similar to DIN
More Information Order no. 87353 Product type Rhombus-head screws Thread [M] 16 Slot [mm] 18 Length [mm] 63 Strength class 8.8
