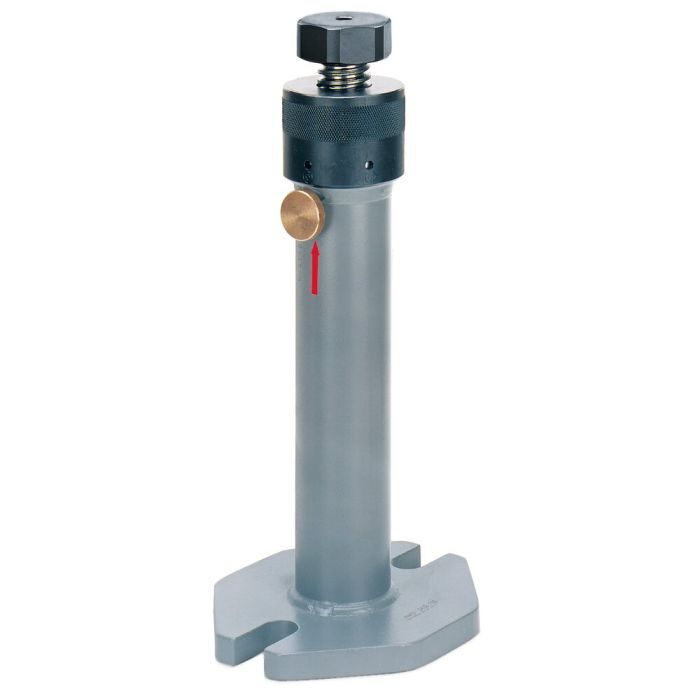

Screw jack, quick-action
Application:
This screw jack allows fast adjustment and continuous adjustment within the entire height range.
Suitable attachments: No. 6440, 6441, 6443, 6445 and 6442G.
Note:
- Hold spindle, max. 6 kg
- Undo lock bolt
- Turn actuating ring to undo the spindle
- Adjust height
- Turn actuating ring to fasten the spindle
- Secure spindle with lock bolt
Do not subject the screw jack to excessive load!
Advantage:
- Thread M10 on the spindle top for fixing attachment elements.
- Greater clamping heights can be achieved by installing with No. 6442G and No. 6415.
- Base plate with closed slots for fastening on the machine table.
| Order no. | 75713 |
|---|---|
| Product type | Screw jack |
| Min. height [mm] | 450 |
| Max. height [mm] | 710 |
| Max. support force [kN] | 40 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
- Atlas screw jack with counter nut Nr. 72587 Size 550, centring hole Ø12 mm, height 320-500 mm, max. clamping force 25 kN, width 90 mm, length 160 mm
- Heavy screw jack Nr. 72652 Size 750, centring hole D12 / M10, height 430-750 mm, width 190 mm, length 220 mm
