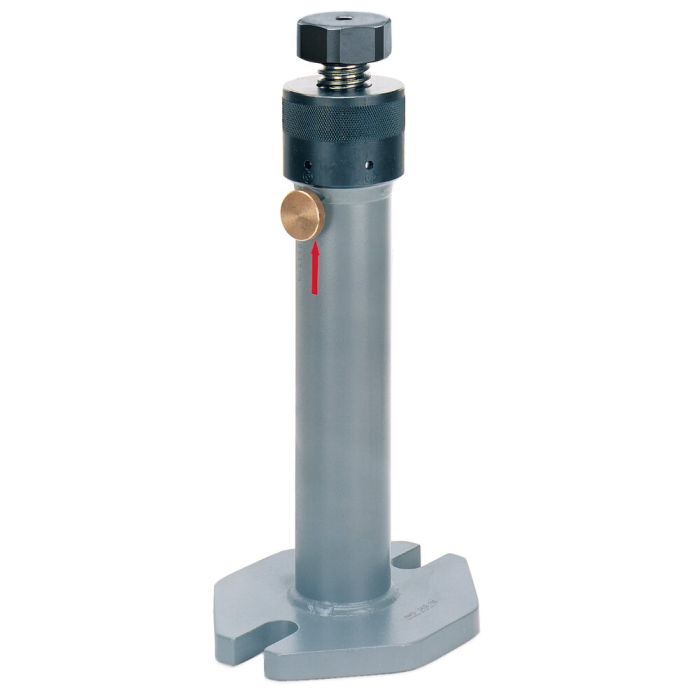

Screw jack, quick-action
Size 1250, centring hole D12 / M10, height 710-1250 mm, width 190 mm, length 220 mm
Order no.
75721
Application:
This screw jack allows fast adjustment and continuous adjustment within the entire height range.
Suitable attachments: No. 6440, 6441, 6443, 6445 and 6442G.
Note:
- Hold spindle, max. 6 kg
- Undo lock bolt
- Turn actuating ring to undo the spindle
- Adjust height
- Turn actuating ring to fasten the spindle
- Secure spindle with lock bolt
Do not subject the screw jack to excessive load!
Advantage:
- Thread M10 on the spindle top for fixing attachment elements.
- Greater clamping heights can be achieved by installing with No. 6442G and No. 6415.
- Base plate with closed slots for fastening on the machine table.
| Order no. | 75721 |
|---|---|
| Product type | Screw jack |
| Min. height [mm] | 710 |
| Max. height [mm] | 1250 |
| Max. support force [kN] | 30 |
