Spacer element

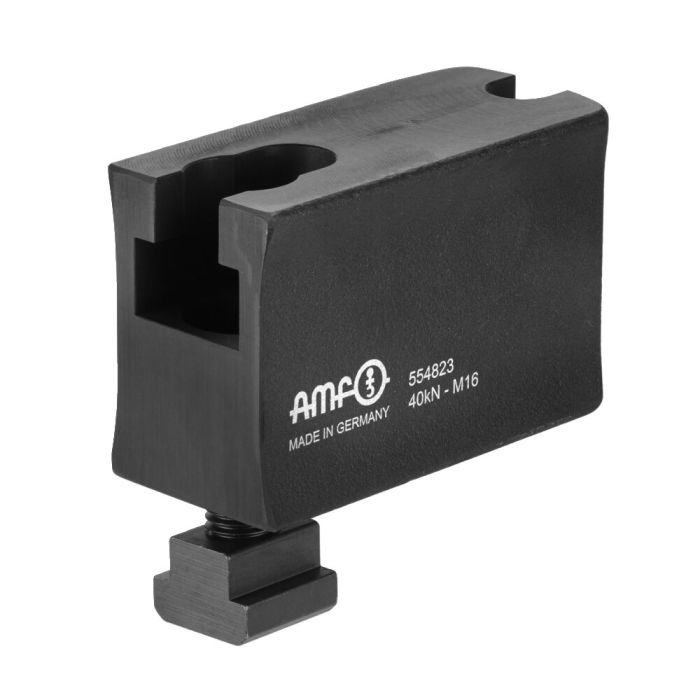

Size 40, slot 18 mm, grid plate M16, height 70 mm

Order no.

554823

Order no.	Size	m	Slot	H	H2	L	Weight [g]
554821	30	M12	14	66 - 128	60	135	2300
554822	32	M12	14	66 - 110	60	95	1570
554823	40	M16	18	76 - 120	70	110	2290
554824	43	M16	18	75 - 150	70	155	3344
554825	49	M20	22	87 - 168	80	175	5286
556407	22	M12	14	40 - 73	35	65	480
562185	22	M10	12	40 - 73	35	65	480

Order no.	b	B1	E1	G1	Md [Nm]
554821	44,5	13	12	M8	70
554822	44,5	13	12	M8	70
554823	47,5	17	16	M8	150
554824	47,5	17	16	M8	150
554825	58,0	21	19	M10	200
556407	36,0	13	12	M6	40
562185	36,0	13	12	M6	35
