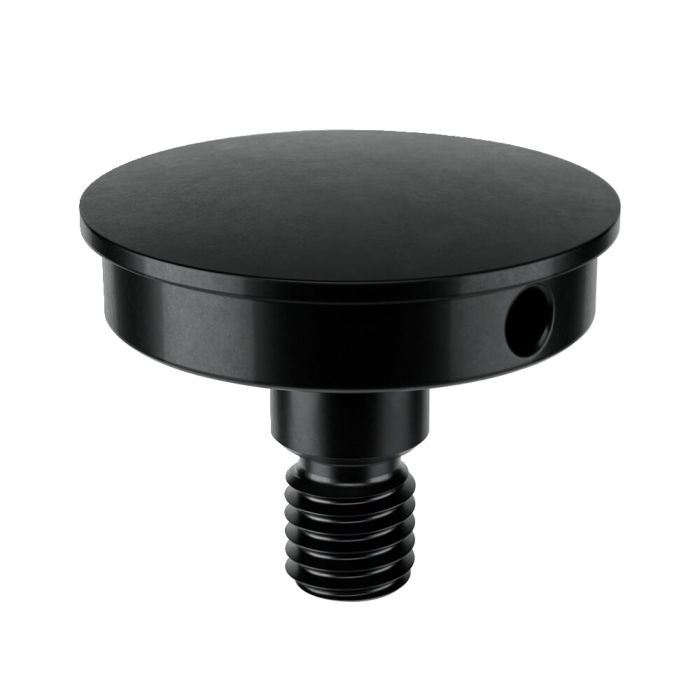

Spherical attachment with thread
For 6435S & 6438S & 6460, ⌀ 39 mm, height 10 mm, thread M10
Order no.
567981
Design:
Complete connection set with external vacuum creator, pneumatic hose, coupling connector for quick-release coupling.
Application:
Connection set for easy connection of the vacuum clamping plate to the compressed air system.
Advantage:
Complete set, small size, universally usable and economical.
| Order no. | 567981 |
|---|---|
| Product type | Attachments |
| Min. height [mm] | 10 |
| Max. height [mm] | 10 |
