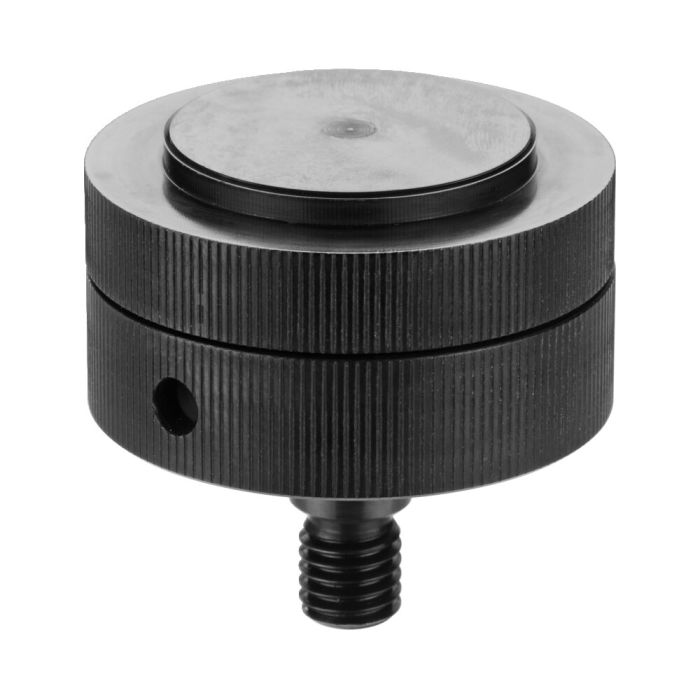

Swivelling attachment smooth with +/- 3° angle function
Thread M10, ⌀ max. 50 mm, height attachment 27,5 mm
Order no.
570303
Application:
The swivel attachment can be fastened to the spindle heads of the AMF 6400, 6435S or 6438S screw jacks using a thread.
Features:
The support has a +- 3° angle function and allows the compensation of large workpiece tolerances.
| Order no. | 570303 |
|---|---|
| Product type | Attachments |
| Min. height [mm] | 27.5 |
| Max. height [mm] | 27.5 |
