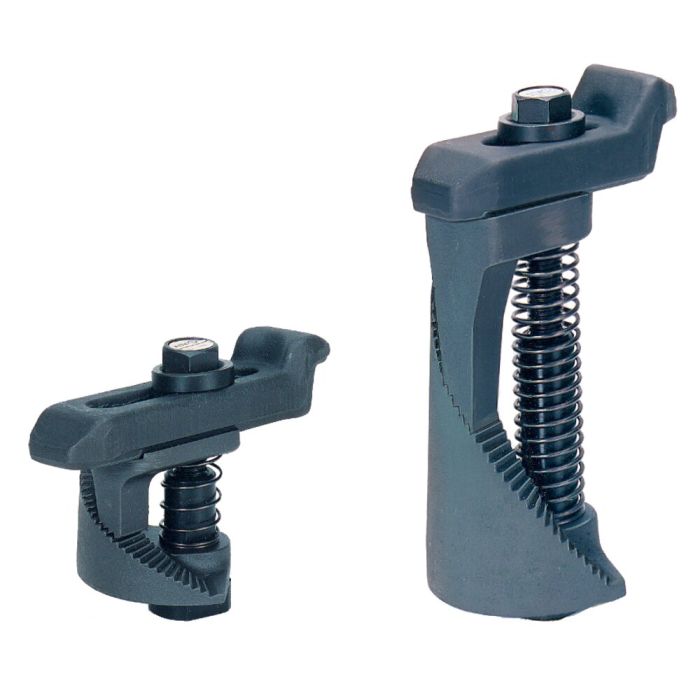

Step clamp
Max. clamping force 15,3 kN, slot 14 mm, height 120-195 mm
Order no.
74807
Application:
- thanks to the compact design the helical clamp requires little space on the machine table
Advantage:
- quickly ready
- The spiral serration allows fast adapting to any workpiece height up to approx. 320 mm
* Specified clamping forces in optimal clamping position (smallest distance of the clamping screw to the clamping position).
| Order no. | 74807 |
|---|---|
| Clamping screw | With clamping bolt |
| Slot [mm] | 14 |
| Min. clamping height [mm] | 120 |
| Max. clamping height [mm] | 195 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Screw jack with flat support Nr. 72389 Size 52, centring hole Ø12 mm / M10, height 42-52 mm, ⌀ 50 mm
Similar products
- Step clamp Nr. 70250 Only match step blocks no. 6500E, for clamping screw metric M12/M14 and inch 1/2, length 160 mm
- Cranked clamp with adjusting support screw, complete Nr. 71290 Slot 14 mm, with clamping stud M12x14x100, clamping height 28-56 mm
- Crocodile clamp, complete with DIN 787 Nr. 79863 Max. clamping force 35 kN, slot 14 mm, for clamping screw DIN 787 M12x14x160, height 0-70 mm
