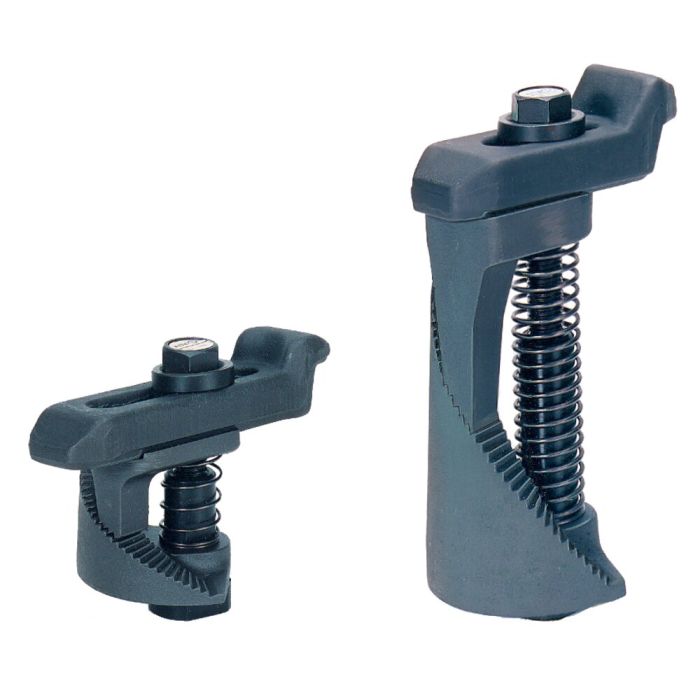

Step clamp
Max. clamping force 19 kN, slot 18 mm, height 50-120 mm
Order no.
75002
Application:
- thanks to the compact design the helical clamp requires little space on the machine table
Advantage:
- quickly ready
- The spiral serration allows fast adapting to any workpiece height up to approx. 320 mm
* Specified clamping forces in optimal clamping position (smallest distance of the clamping screw to the clamping position).
| Order no. | 75002 |
|---|---|
| Clamping screw | With clamping bolt |
| Slot [mm] | 18 |
| Min. clamping height [mm] | 50 |
| Max. clamping height [mm] | 120 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Screw jack with flat support Nr. 72405 Size 70, centring hole Ø12 mm / M10, height 50-70 mm, ⌀ 50 mm
Similar products
- Crocodile clamp, complete with DIN 787 Nr. 79210 Max. clamping force 55 kN, slot 18 mm, for clamping screw DIN 787 M16x18x200, height 0-80 mm
- Step clamp Nr. 70391 Only match step blocks no. 6500E, for clamping screw metric M16/M18 and inch 5/8, length 125 mm
- Cranked clamp with adjusting support screw, complete Nr. 71316 Slot 18 mm, with clamping stud M16x18x125, clamping height 36-69 mm
