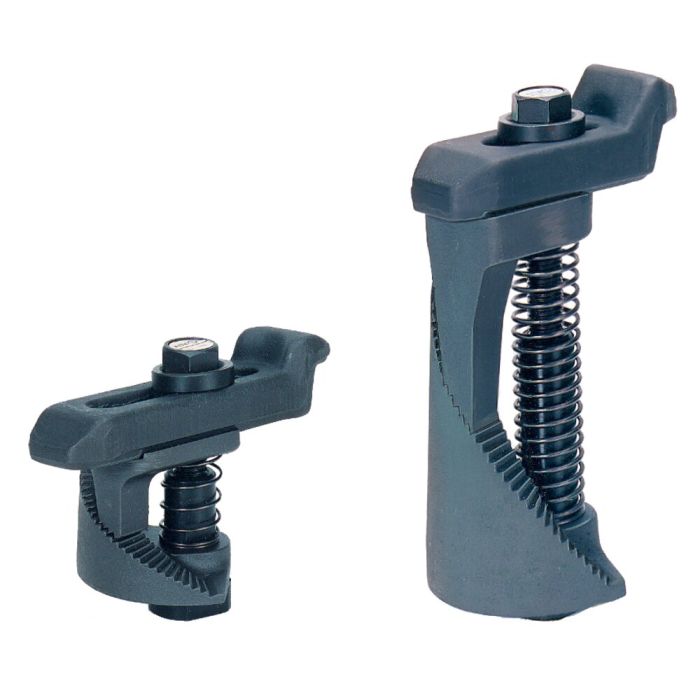

Step clamp
Max. clamping force 11,4 kN, slot 12 mm, height 15-45 mm
Order no.
74716
Application:
- thanks to the compact design the helical clamp requires little space on the machine table
Advantage:
- quickly ready
- The spiral serration allows fast adapting to any workpiece height up to approx. 320 mm
* Specified clamping forces in optimal clamping position (smallest distance of the clamping screw to the clamping position).
| Order no. | 74716 |
|---|---|
| Clamping screw | With clamping bolt |
| Slot [mm] | 12 |
| Min. clamping height [mm] | 15 |
| Max. clamping height [mm] | 45 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
