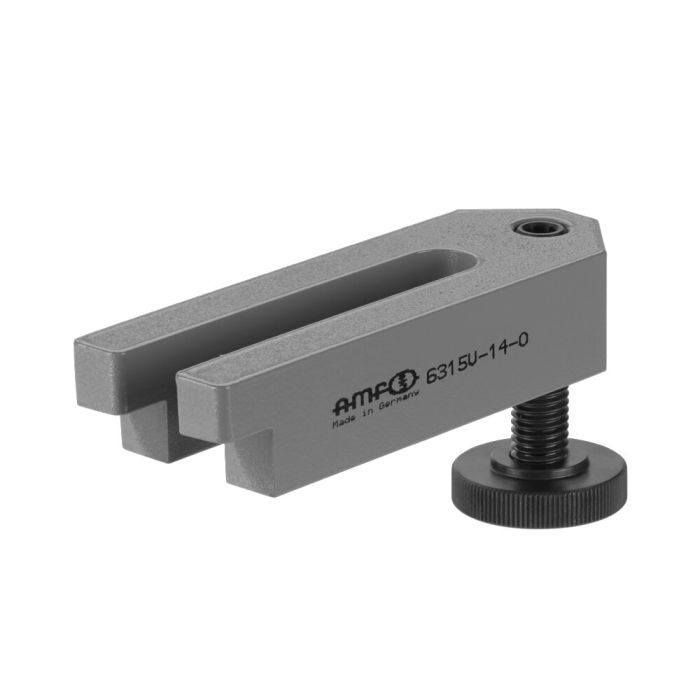

Stepped clamp with adjusting support screw
For clamping screw M16/M18, clamping height 13-67 mm
Order no.
71191
*depending on depth of slot to DIN 650 and position of fixture nut.
To clamp thin parts, turn the clamp over.
To clamp thin parts, turn the clamp over.
| Order no. | 71191 |
|---|---|
| Clamping screw | Without clamping bolt |
| Clamping screw metric [M] | 16, 18 |
| Min. clamping height [mm] | 13 |
| Max. clamping height [mm] | 67 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Hexagonal nuts with collar (1.5 d high) Nr. 82586 Turned, size M18, height 27 mm, thread width 27 mm*
Similar products
- Stepped clamp with adjusting support screw Nr. 74575 For clamping screw M16/M18, clamping height 13-62 mm
- Tapered clamp with adjusting support screw Nr. 70219 For clamping screw M16/M18, clamping height 13-52 mm
- Cranked clamp with adjusting support screw Nr. 71225 For clamping screw M16/M18, clamping height 36-75 mm
- Crocodile clamp Nr. 79855 Max. clamping force 60 kN, slot 16/18/20/22 mm, for clamping screw M16/20, height 0-80 mm
- Clamp with plastic cap, complete Nr. 376913 Slot 16 mm, with clamping stud M16x16x160, clamping height 0-45 mm
