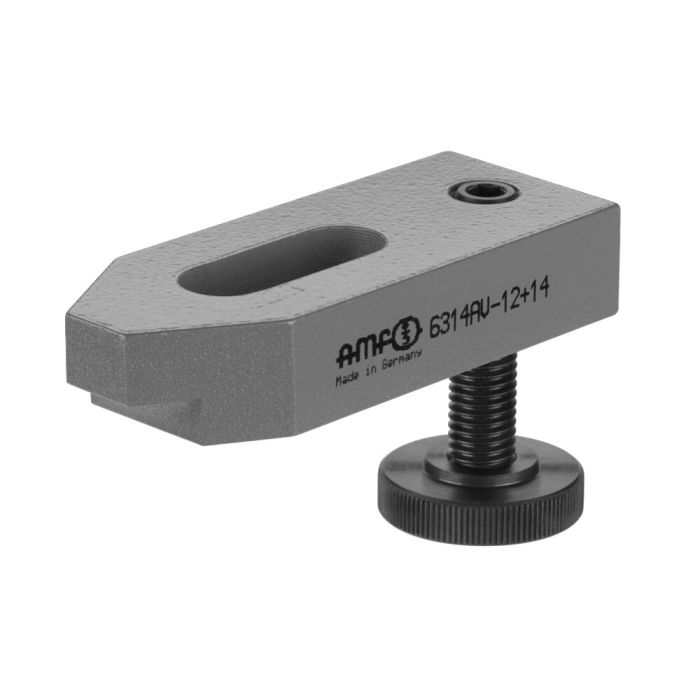

Stepped clamp with adjusting support screw
For clamping screw M16/M18, clamping height 13-62 mm
Order no.
74575
*depending on depth of slot to DIN 650 and position of fixture nut.
To clamp thin parts, turn the clamp over.
To clamp thin parts, turn the clamp over.
| Order no. | 74575 |
|---|---|
| Clamping screw | Without clamping bolt |
| Clamping screw metric [M] | 16, 18 |
| Min. clamping height [mm] | 13 |
| Max. clamping height [mm] | 62 |
