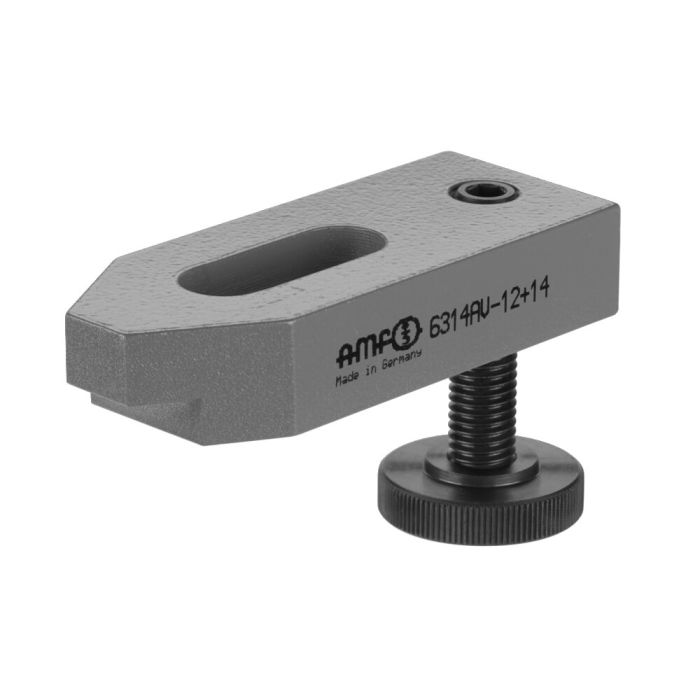

Stepped clamp with adjusting support screw
For clamping screw M12/M14, clamping height 10-55 mm
Order no.
74567
*depending on depth of slot to DIN 650 and position of fixture nut.
To clamp thin parts, turn the clamp over.
To clamp thin parts, turn the clamp over.
| Order no. | 74567 |
|---|---|
| Clamping screw | Without clamping bolt |
| Clamping screw metric [M] | 12, 14 |
| Min. clamping height [mm] | 10 |
| Max. clamping height [mm] | 55 |
