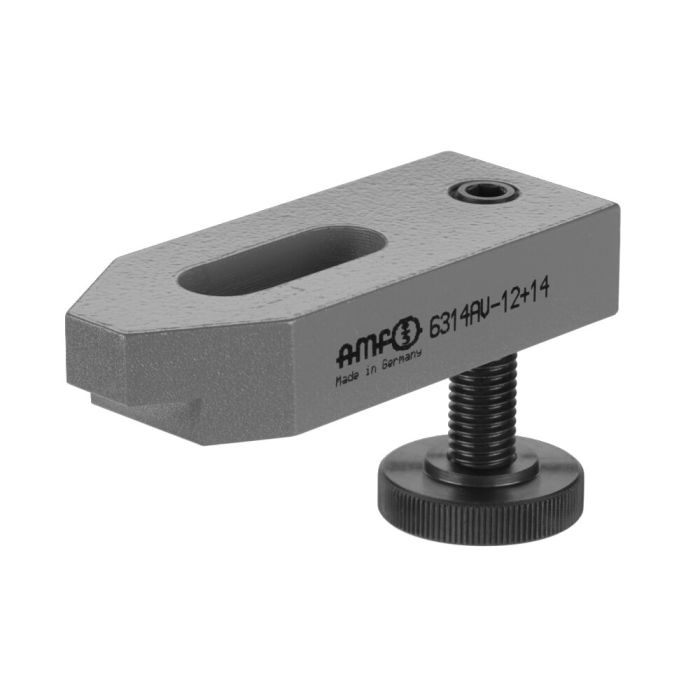

Stepped clamp with adjusting support screw
For clamping screw M20/M22, clamping height 16-77 mm
Order no.
74583
*depending on depth of slot to DIN 650 and position of fixture nut.
To clamp thin parts, turn the clamp over.
To clamp thin parts, turn the clamp over.
| Order no. | 74583 |
|---|---|
| Clamping screw | Without clamping bolt |
| Clamping screw metric [M] | 20, 22 |
| Min. clamping height [mm] | 16 |
| Max. clamping height [mm] | 77 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
Similar products
- Stepped clamp with adjusting support screw, complete Nr. 74658 Slot 20 mm, with clamping stud M20x20x160, clamping height 16-77 mm
- Stepped clamp with adjusting support screw Nr. 71258 For clamping screw M20/M22, clamping height 16-85 mm
- Crocodile clamp, complete with DIN 787 Nr. 374942 Max. clamping force 70 kN, slot 20 mm, for clamping screw DIN 787 M20x20x250, height 0-100 mm
