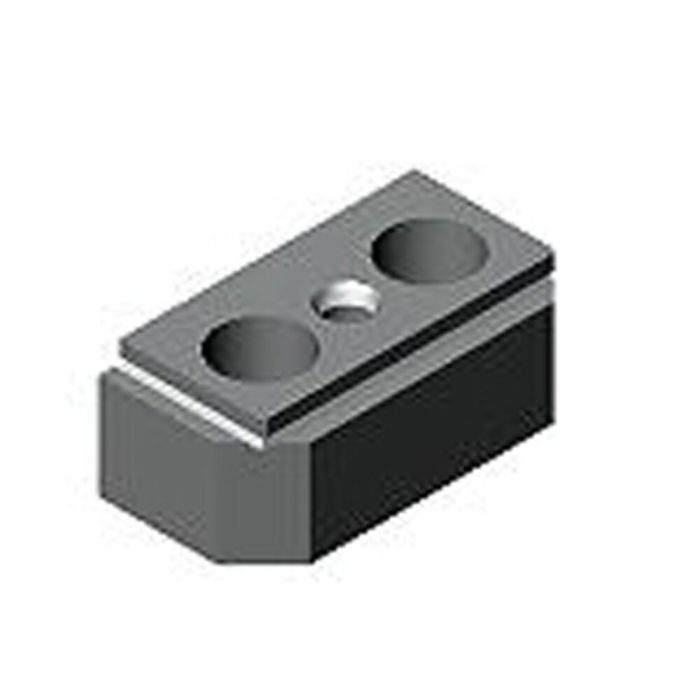

Support-stop block
Dist. fr. face to loc. holes 15 mm, support height 30 mm, dia. drilling 16 mm, length 80 mm, width 39 mm
Order no.
78675
| Order no. | 78675 |
|---|
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Centring sleeve, slotted Nr. 78725 For a precise centering on grid holes, dia. 16,1 mm, length 20,5 mm
Similar products
- Support-stop block, single-sided Nr. 88807 Dist. fr. face to loc. holes 15 mm, support height 30 mm, dia. drilling 16 mm, grid 40 mm, length 78 mm
- Support-stop block, double-sided Nr. 88823 Dist. fr. face to loc. holes 30 mm, support height 30 mm, dia. drilling 16 mm, grid 40 mm, length 78 mm
