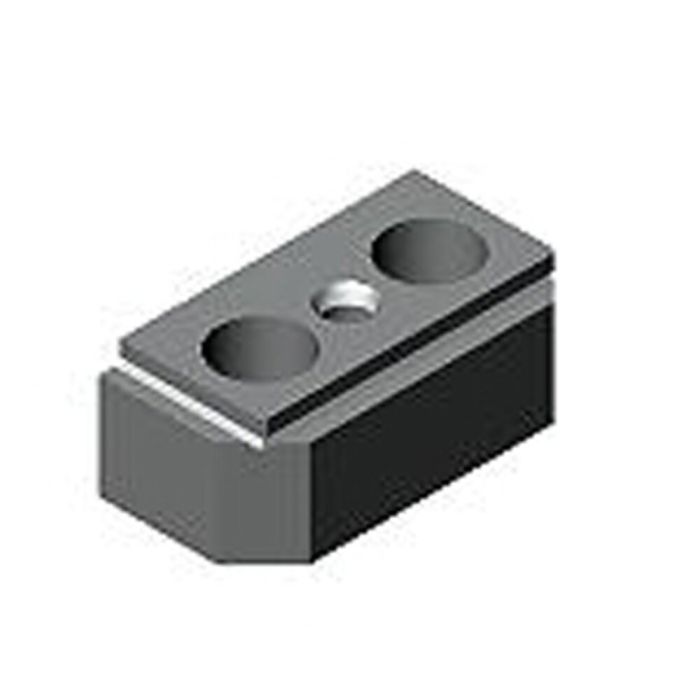

Support-stop block
Dist. fr. face to loc. holes 20 mm, support height 40 mm, dia. drilling 22 mm, length 108 mm, width 48 mm
Order no.
78683
| Order no. | 78683 |
|---|
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Centring sleeve, slotted Nr. 78733 For a precise centering on grid holes, dia. 22,1 mm, length 23 mm
Similar products
- Support-stop block, double-sided Nr. 88831 Dist. fr. face to loc. holes 40 mm, support height 40 mm, dia. drilling 22 mm, grid 50 mm, length 88 mm
- Support-stop block, single-sided Nr. 88815 Dist. fr. face to loc. holes 20 mm, support height 40 mm, dia. drilling 22 mm, grid 50 mm, length 88 mm
