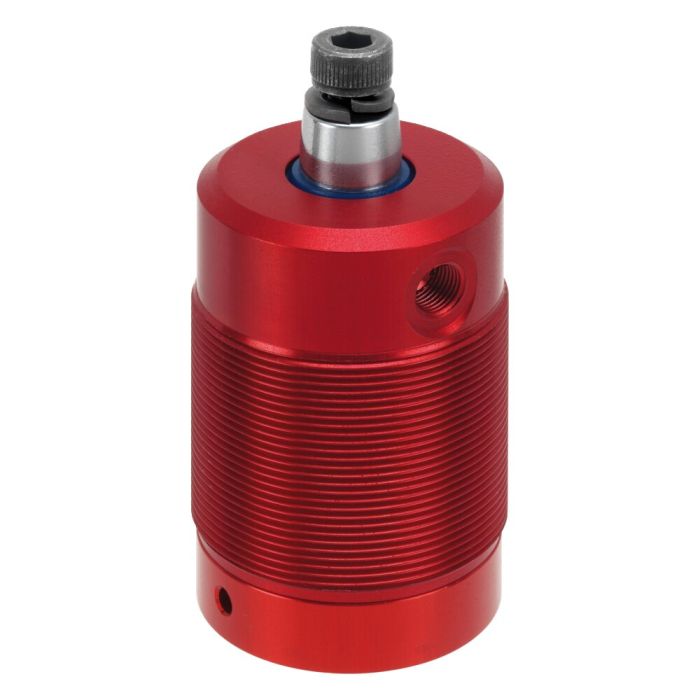

Swing clamp, pneumatic, screw-in version
Size 12, max. clamping force 0,03 kN, left swinging
Order no.
560027
Note:
Operate only with lubricated air.
F3 = at 6 bar max. air pressure
* Swing clamps may only be loaded during the clamping stroke Y.
| Order no. | 560027 |
|---|---|
| Product type | Swing clamp |
| Max. clamping force [kN] | 0.03 |
| Größe Schnellspanner | 12 |
| Material | Aluminium, red anodised |
| Swing direction | Left swinging |
